Filterek Products Tech Co., Ltd

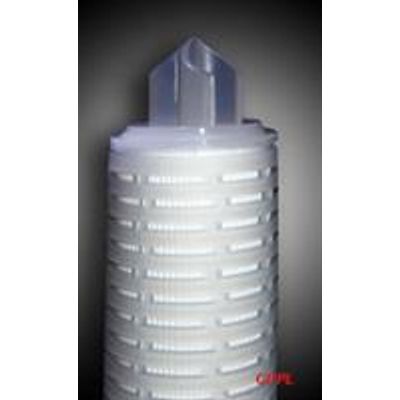

Filterek - Model CPPL -Polypropylene Pleated Filter Cartridges
CPPL Advantage Cartridges, made of pleated polypropylene microfiber, provide high efficiency and high purity filtration. The high submicron efficiency of the Advantage line makes it an ideal membrane pre-filter or cost-effective alternative to membrane cartridges in a wide range of applications. Advantage Pleated Cartridges are available in 0.2µm, 0.5µm, 1.2µm, 2.5µm, 5µm, 10µm, 20µm, 50µm ,75µm and 100µm absolute rated pore sizes (99.8% removal; β =500).
Most popular related searches
pleated filter cartridge
filter cartridge
pleated filter
pleated cartridge
fluid filter element
water trap filter
polypropylene filter
water treatment
drainage layer
filter element
- All-polypropylene media and construction meet a broad range of performance requirements.
- One-piece fused construction is 100% bonded for maximum cartridge integrity.
- High surface area design provides superior flow rates and extended service life.
- All materials of construction are FDA listed as acceptable for potable and edible liquid contact according to CFR Title 21.
- Fixed pore construction provides ultimate particle retention efficiency.
- Major end seal options are available to fit most vessel requirements.
- Advantage cartridges are non-fiber releasing.
- Chemicals
- Electronic
- Food & Beverage
- Magnetic Media
- Pharmaceuticals
- Cosmetics
- Medical
- Photographic
- Water treatment
- Restaurant water
- Trap filter for DI
Filtration Ratings:
- 99.8% at 0.2µm,0.5µm,1.2µm, 2.5µm, 5µm, 10µm, 20µm, 50µm ,75µm and 100µm pore sizes
Materials of Construction:
- Type of Construction: integrally sealed, all-polypropylene pleated media supported by all-polypropylene construction
- Filter Media: composite, spun bonded /melt blown continuous polypropylene microfiber matrix
- Pleat Support Layer (Upstream): polypropylene
- Pleat Drainage Layer (Downstream): polypropylene
- Media Support Core: high-strength polypropylene
- Media Protective Cage: molded polypropylene
- Pleat Pack Side Seal: fused polypropylene
- DOE Caps: polypropylene
- SOE Caps/O-Ring Adaptors: polypropylene
