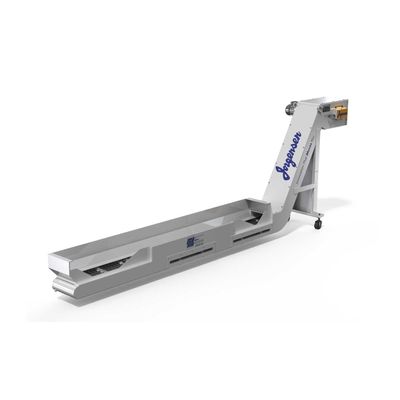

EcoFilter - Filtering Chip Conveyor

1. Chips and coolant enter the conveyor’s load section.
2. A hinged or scraper belt carries out large chips and/or stringers
3. Coolant and fine chips flow to the section in between the runs of belt, where the EcoFilter® cell is located.
4. The filter cell separates fine chips from coolant. Filtered coolant flows from the inside of the filter cell, out of the side of the conveyor, and into the coolant tank.
5. Brushes continuously wipe fine chips from the surface of the filtration cell, keeping the cell clean for coolant to pass through.
6. Small chips exit between the runs of belt through the bottom run via patent-pending CleanCleat® system, to the bottom of the conveyor casing.
7. Fines that migrate to the bottom of the casing are scraped up to the top run of belt and discharged.

Jorgensen’s standard hinged steel belt “EcoFilter®-Ready” conveyors can convert to an EcoFilter® with a simple field retrofit kit within an estimated 4 hours.
