Reynolds - Model CTM Series -Filters Systems

FromReynolds Culligan

SHARE

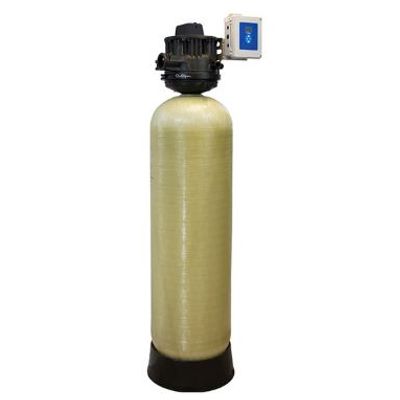

The Culligan Top Mount (CTM) Series filter models use the latest control valve technology to offer superior flow rates and long-lasting performance for commercial and industrial applications. The top-mounted control minimizes the system`s footprint and is constructed of a corrosion-resistant, heavy-duty plastic tested in extreme operating conditions to service all types of problem water (high chloramines, heavy iron, etc.). The CTM valve and system also carry certification for testing and passing the highest drinking water standards.

Most popular related searches

drinking water standard

drinking water safety

pressure relief valve

NSF drinking water standard

corrosion resistant valves

Brands : Culligan
Inlet Pressure (Dynamic) : 35 to 125 psig 240 to 860 kPa
Voltage : 120 V
Frequency : 50 Hz 60 Hz
Feed Water Temperature : 40 to 120 ºF 4 to 49 ºC
Vacuum : None
Maximum Turbidity : 5 NTU
Maximum Chlorine : 1.0 mg/L
Maximum Iron : 5.0 mg/L
Normal Service Flow Rate1 : 24 gpm at 5 psi drop (90.8 lpm at 34.5 kPa drop)
Note for Service Flow Rate : Service flow rates are based on 2" flow adapter and may be slightly lower when using the 1.5" flow adapter: Peak (15 gpm/ft2 - 37 m3/hr/m2) - Very good quality effluent at specified flow. Increased pressure loss. Recommended for suspended solids loads up to 10 ppm.
Peak Service Flow Rate : 36 gpm at 10 psi drop (136.3 lpm at 69 kPa drop)
Backwash Flow : 30 gpm 114 L/min
Note for Backwash Flow : Backwash flow rates are based on 12-14 gpm/ft2 (29-34 m3/hr/m2) using 50ºF (10ºC) water. A different backwash rate may be required depending upon water temperature.
Media Quantity : 615 lb 280 kg
Pipe Size2 : 1-1/2 in 2 in 38 mm 51 mm
Tank Size3 : 21 x 62 in 533 x 1,575 mm

Food and Beverage - Improved taste
Educational Facilities - Boiler and cooling tower make-up water for scale reduction and improved energy costs
Restaurants - For dishwashing, cleaning material savings, scale reduction
RO, Softener, and DI Pretreatment
Car washes - Quality results, detergent and water heating savings, scale reduction
Apartment buildings, assisted living facilities and hotels - Quality water for laundry, dishwashers, boilers
Grocery / Retail - Quality water for aesthetics and help extend equipment life
Light industry - For process and make-up water, boiler and cooling system pretreatment, general housekeeping
Office buildings - For heating plant pretreatment, tenant convenience, general housekeeping

Single or multiple tank configurations available
Corrosion - resistant control valve body certified to NSF safe drinking water standards
Integrated flow meter, vacuum breaker and pressure relief valve
Backwash initiation based on either time clock, flow meter or differential pressure inputs
Telemetric data capabilities with remote monitoring
No special tools required for servicing
Robust piston-valve technology uses retained, radial seals in the body for improved longevity and reliability. Ideal for challenging water conditions
Control complies with CUL, CE, UL 50/50E and UL 746C standards for NEMA 3R enclosure rating

1.5" or 2" Flow adapters are available to provide every CTM unit the flexibility to use different inlet pipe sizes with minimal impact to flow rates
Patented Progressive Flow - Culligan®’s Smart Controller can monitor flow demands bringing
