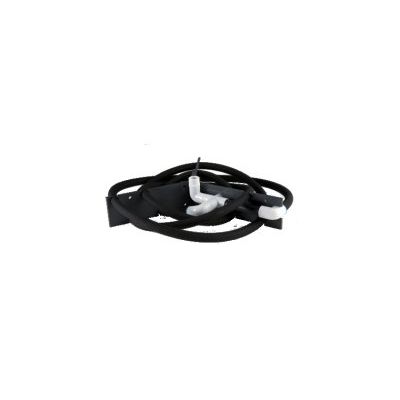

MixAir Twister - Model TB16 -Fine Bubble Diffuser
The Twister TB16 is a fine bubble diffuser that both aerates and mixes in one efficient device. It is designed to generate dissolved oxygen throughout a water column to accelerate inversion or turnover which keeps water fresh. The TB16 works 24/7 to improve water clarity, stimulate biological activity and provide continuous mixing at a lower power consumption than traditional mixers with the benefit of aerating at the same time.
-
Diffuser / Aerator
-
Turnover / Mixing
Use the MixAir Twister™ TB16 to economically aerate lakes and ponds or to vigorously mix industrial tanks.
The Twister™ TB16 is a fine bubble diffuser that both aerates and mixes in one efficient device. It is designed to generate dissolved oxygen thoughout a water column to accelerate inversion or turnover which keeps water fresh.
The TB16 works 24/7 to improve water clarity, stimulate biological activity and provide continuous mixing at a lower power consumption than traditional mixers with the benefit of aerating at the same time.
- Construction: Schedule 40/80 PVC, UV inhibited
- Membrane: 0.85" O.D. patent protected compound extrusion
- SCFM Range: 3.0 - 9.0
- Minimum Operating Depth: 5`
- Dimensions: 18" dia. X 4" H
- Weight: 3.4 lbs
- Flow Interference: 0.85"
- Active Surface Area: 408 sq in
- Linear Lift: 306"
- 3.0 - 9.0
- 5 feet
- Schedule 40/80 PVC, UV inhibited
- 1/2" FNPT
- 0.85" O.D. patent protected compound extrusion
- 1/2" MNPT fitting for airlineCompressor sized to deliver desired PSI and SCFM
- 5 feet
- 408 sq in
- 306"
- 0.85"
- 1 year
- Each: 5 lb
