Finetank - Externally Reinforced System
FromH&L Global Group
By client`s request, externally reinforced system with no internal tie-rods is available. This system allows easy access into the tank for cleaning and maintenance.
Most popular related searches
GRP pipe
water storage
manhole cover
GRP tank
tank cleaning
tank cleaning product
dust cover
manhole
tank maintenance
Reliable quality in strength and durability

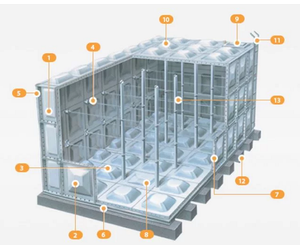

FINETANK - GRP Sectional Tanks basically adapt the internally reinforced system, which ensures the better reliability and robustness. As an option, externally reinforced system which has no internal reinforcements also can be applied according to project`s requirement.
- Wall - Hot press molded GRP panel (1000x500mm)
- Wall - Hot press molded GRP panel (1000x1000mm)
- Bottom – Hot press molded GRP panel - Convex (1000x1000mm)
- Internal tie-rods - Stainless steel 304 or 316
- Corner frame - Hot dipped galvanized steel
- Base frame - Hot dipped galvanized steel
- Assembly bolts in size M10 / 12 / 14
- Inside : Stainless steel 304 or 316
- Outside : Galvanized steel (with or without rubber cap)
- Drain – Hot press molded GRP panel - Concave (1000x1000mm)
- Dust proof manhole cover – Hot press molded GRP panel (Ø850)
- Top cover – Hot press molded GRP panel (1000x1000mm)
- External ladder – Hot dipped galvanized steel or stainless steel
- Foundation – Concrete plinth with interval of 1m span
- Roof support – Pultruded GRP pipe
