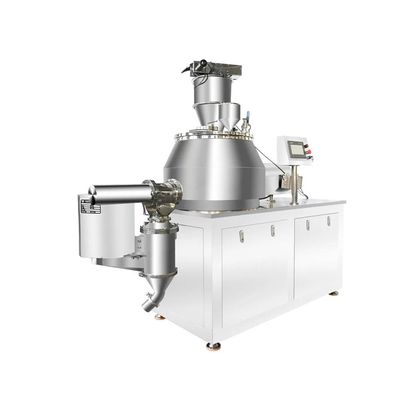

Finetech -Â Model FTSG Series -High Speed Rapid Mixer Granulator
This equipment is specifically designed for the pharmaceutical, food, and chemical industries. It utilizes high-speed mixing and rotary cutting technology to achieve rapid material blending, wet granulation, and integrated drying. The three-dimensional mixing paddles ensure uniform dispersion without dead zones. Adjustable rotation speeds and cutting blades work together to produce uniform particle size distribution and high yield. Operated via PLC with a touchscreen interface, parameters can be programmed to meet GMP requirements. The fluid dynamics design is optimized for reduced energy consumption, while corrosion-resistant stainless steel construction ensures durability. Ideal for producing tablets, granules, and powders, this system helps improve both efficiency and product quality.
- The machine features a conical mixing bowl design for improved mixing uniformity. The bowl base incorporates a double-layer jacket with a built-in water circulation cooling system to enhance granule quality.
- Designed to integrate with optional automatic feeding and binder addition systems, the unit supports automatic lid opening/closing and discharge. It includes an inbuilt automatic cleaning system, and the gap between the mixing paddle and the bowl bottom is kept within 1.5 mm to prevent material residue.
- A uniquely designed drive shaft chamber combines mechanical sealing, air sealing, and isolation sealing to eliminate powder build-up and reduce the risk of material contamination due to seal wear.
- The system adopts a PLC-based HMI (human-machine interface) control system, enabling endpoint monitoring during granulation, real-time data display, and storage, printing, or export of process parameters.
- Equipped with hierarchical user access control, the system supports traceability and compliance with FDA and GMP certification requirements.
