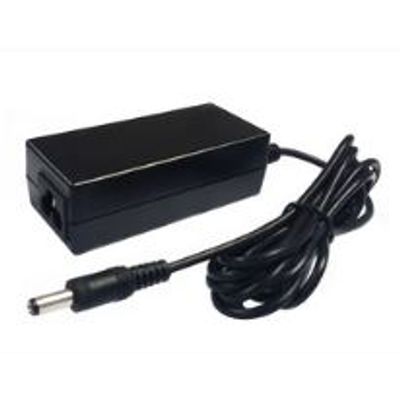

Fining - Model FAS0500500-U -36W AC-DC Level VI Efficient Power Adapter with UL Certificate

The entire series supplies different output voltages between 5VDC and 48VDC that can satisfy the demands for various kinds of electronic devices. With the efficiency up to 80% and the low no-load power consumption below 0.3W, it is compliant with CE, EN60950, UL 60950-1, 2nd Edition, 2011-12-19 (Information Technology Equipment - Safety - Part 1: General Requirements) CAN/CSA C22.2 No. 60950-1-07, 2nd Edition, 2011-12.The entire series utilizes the 94V-0 flame retardant plastic case, providing the double insulation that effectively prevents electrical shock. It is approved with UL, FCC, CB, DOE safety certificates.

Safety Approvals

Mechanical Characteristics

• Ultra-small size, light weight, streamline, fully sealed and easy to carry;
• Competitive price design, high reliability;
• Built-in over voltage, over current and short circuit protection;
• Input Characteristics: voltage :100-240VAC ± 10%; Frequency: 50/60Hz; Current: 1.0A Max; Starting Time: 3s Max; Inrush Current: 20A/240VAC Max;
• Output characteristics: constant voltage mode; high precision, low noise;Hold up time: 20mS Min;
• Environmental: Operating temperature: 0 ℃ -40 ℃, 5% -90% RH; Storage temperature: -20 ℃ -85 ℃, 5% -
• 95% RH;
• Cooling mode: natural cooling;
• Energy efficiency accordingly: ERP/ CEC-VI standard;
• Safety standards: CE, EN60950, UL 60950-1, 2nd Edition, 2011-12-19 (Information Technology Equipment - Safety - Part 1: General Requirements) CAN/CSA C22.2 No. 60950-1-07, 2nd Edition, 2011-12;
• M eet ROHS standards;
• Input Block Type: IEC-C6/IEC-8/IEC-8; ;
• Average failure rate: 50,000 hours;

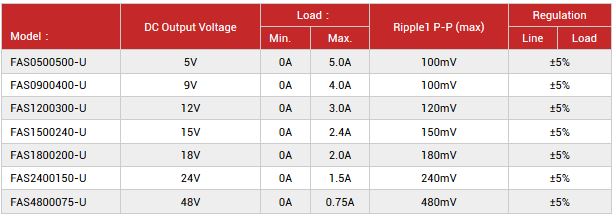

• Output electrical characteristics: (see below sheet);
