Consilium - Model MD2020 -Fire Alarm Central Unit
With advanced fault detection, supplementary functions, and a degraded mode for continuous operation, the MD2020 offers comprehensive control and monitoring, significantly elevating fire safety measures.
Versatile Configuration Options
Fire detection system for addressable detectors and devices. It can be used in traditional loop configuration or in Safe Return to Port application. The platform can. manage up to 80 loops from one central unit and up to 50 units can be interconnected.

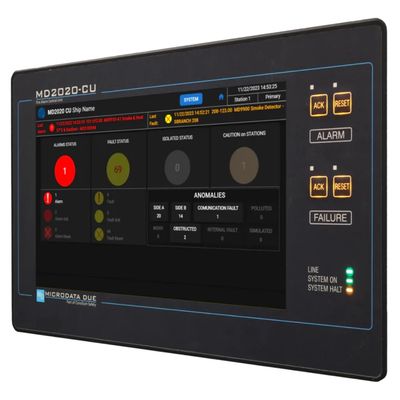

Touch Screen Display
The system features an intuitive touch screen for user-friendly operation.
WEBAPP-BASED HMI
Built on WebApp tech, the interface provides sophisticated and accessible interaction
Cross-Platform Compatibility
The HMI works across Linux, Windows, Android, and MacOS, ensuring broad information distribution to suit diverse user preferences.
- Configurable both for Centralized or Distributed Systems
- Developed according to EN54-2 and EN54-4 standards
- Connects up to 20 Loops via Loop Control Unit (LCU) cards
- Connects up to 40 Branches via Branch
- Control Unit (BCU) cards
- Capability to increase Branch connections to 80 using the Remote Node MD2020-RM
- Communication bus between LCU/BCU cards and addressable units based on
- MD2 protocol
- Up to 50 Control Units can be interconnected
- Up to 127 devices can be connected to each Loop
- Up to 180 devices can be connected to each Branch
