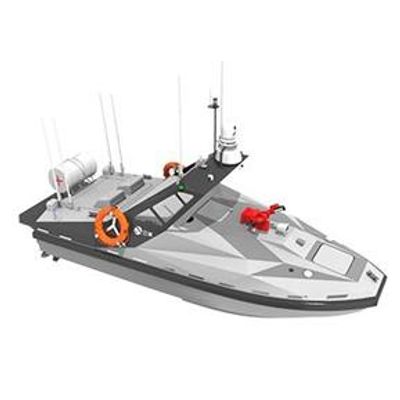

Oceanalpha - Model L30B - Fire Control & Rescue USV
L30B USV developed by Oceanalpha Co. Ltd is specified for fire control and rescue on water, carrying professional fire water cannon equipments to make it convenient .high speed .flexible and intelligent. L30B USV is the new intelligent platform designed for the disaster investigation in close range, ship fire disposal, search and rescue instead of fireman going into the scene for the fire to improve the over all fire control and reduce ability.
L30B Unmanned Fire Fighting Boat is independently researched and developed by Oceanalpha Co., Ltd based in Zhuhai China which is specially designed for firefighting occurred on water, carrying professional fire water cannon equipments to make rescue working prompt ,convenient ,flexible and intelligent.
L30B Autonomous Fire Fighting Boat is a new intelligent platform applied to the disaster investigation in close range, ship fire disposal, search and rescue instead of firemen going into the scene of the fire to improve the overall fire control and rescue ability.
L30B fire fighting USV is able to carry two life rafts or life rings controlled and thrown remotely by firemen to rescue the victims.
L30B fire fighting USV belongs to large sized platform applying to search and rescue working on surface water which dimension is more than 7 meters, made of high strength fiberglass with carbon fiber and Kevlar ballistic fabric material featured by its bullet-proof characteristic, driven by diesel fuel power enabling the max. speed to reach 46knots ,cruising ability 220NM covered within 50km data communication and 30km video communication ,and allowing the USV to navigate normally on the condition of Sea Scale 5th degree.
Due to large size, multi-screens control base station is necessary for the platform on which different tasks and status can be displayed independently.
Our L30B Fire control & Rescue USV is a platform carrying one or two life rafts or life rings which can be controlled and thrown remotely by firemen lo rescue the victims.
USV Condition Monitoring
Rotate speed, oil mass, oil tempera-lure, electric quantity, voltage, rudder angle and other performance index
Video and Mission
Real-time video from left, right and front camera; Trajectory and mission status; Navigation info, depth, longitude, latitude and speed
Electronic chart, LIDAR, infrared imagery and side-scan sonar
One of them is to display USV condition monitoring such as rotate speed, oil mass, oil temperature, electric quality, voltage, rudder angle and other performance index.
Another one is to display video and mission including real-time video from left, right and front camera; trajectory and mission status; navigation information; depth, length ,latitude and speed.
The last one is to display environment sensing,for instance, electronic chart, LIDAR, infrared imagery and side-scan sonar.
L30B fire control & rescue USV is innovative solution to fire control and rescue career compared with traditional method which is low efficiency, time-consuming and high risk.
It is inevitable trend that unmanned systems take place of traditional artificial model in high-risk areas.
- Dimension: 7.5*2.67*2.5m
- Material: High strength fiberglass with carbon fiber and kevlar ballistic fabric
- Power Supply: Diesel fuel
- Draft: 0.31m
- Max. speed: 46knot
- Communication range: data50km
- Communication range: video30km
- Crusing Ability: 220NM
- Sea State: SS-5
