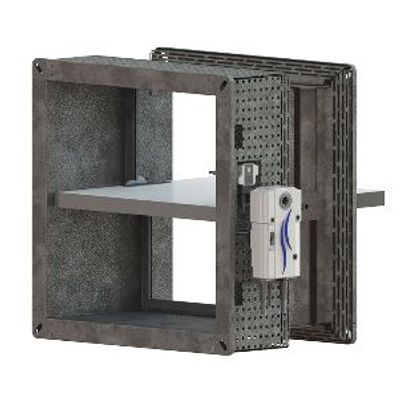

SagiCofim - Model EN 1366-2 – HTE 2.0 -Fire Damper EI 90/120/180/240 S rectangular

The damper is certified in accordance with UNI EN 1366-2, classified in accordance with UNI EN 13501-3 and CE marked in accordance with UNI EN 15650:2010, with the following installation options:

• inside a rigid wall in foamed concrete/masonry, min 100 mm thickness, min density 500 kg/m³ EI 120 S (ve i-o);
• inside a light wall in plasterboard, min 100 mm thickness, EI 120 S (ve i-o)
• inside a floor in foamed concrete, min 150 mm thickness, min density 650 Kg/m³ EI 240 S (ho i-o);

The HTE 2.0 fire damper is available with thermoelectric fuse and spring return actuator.

Technical features:

• sizes range from 100 x 200mm to 800 x 600mm (in single section construction).
• frame in galvanized steel with asymmetric casing depth 300 mm, with multihole dissipative guard;
• calcium silicate blade with special control mechanism;
• silicone seal to seal against cold smoke;
• heat expanding seal for hot smoke resistance.

Certifications:

• UNI EN 1366-2;
• UNI EN 13501-3.

They are installed straddling masonry walls, lightweight plasterboard walls and concrete slabs, certified EI.
For further details, see the Downloads section.

• Asymmetric casing with reduced deepth of 300 mm
• Coppie torcenti ridotte per permettere l’uso di motori dalle coppie inferiori
• Multihole dissipative guard, that makes it easier for the mortar/wool and pre-hole in masonry to adhere to each other.
• Class S cold smoke sealed, the highest possible, producing levels 4 times lower than regulations require.
• Classification EI 120 for light wall in plasterboard, and rigid wall in foamed concrete/masonry
• Classification EI 240 for floor in foamed concrete
