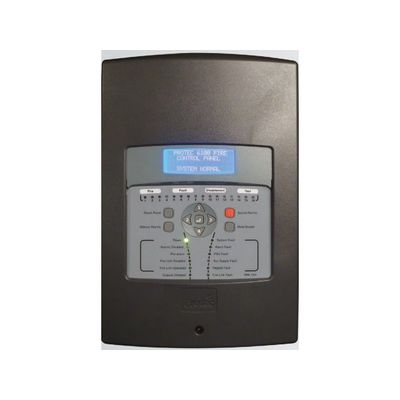

Aurel - Model Protec Algo-Tec 6100 -Fire Detection and Alarm System
The Protec Algo-Tec 6100 is an interactive digital addressable fire detection and alarm system ideally suited for small and medium sized buildings such as shops, hotels and offices.
- Rated Voltage: 100 to 240V ac rms
- Rated Frequency: 50 to 60 Hz
- Rated Current: 600mA rms
- Working Voltage: 21.5 - 29V dc
- Temperature Range: 0 - 40°C
- Maximum Humidity: 85% Non-condensing
- IP Rating: IP30
- Battery Type: 2 x 12V 3.3Ah sealed lead acid
- Standby Load (Mains Fail Condition): 22mA
- Display: Backlit liquid crystal display 4 lines of 20 characters
- Digital Addressable Loops:1 loop, with 192 address capacity Algo-Tec™ 6000PLUS Protocol
- Total Loop Load: 600mA including all loop connected devices
- Zones: 32 Zones, 16 with LED indication, plus general fire indicator
- Integral Charger: 1A dc switch mode, temperature compensated
- Integral Battery: 2 x 12V 3.3Ah sealed lead acid
- Alarm Outputs: 2 monitored conventional sounder circuits (100mA per output maximum), Up to 192 alarm outputs using loop output devices.
- Global Fire Outputs: 1 set of non-monitored changeover contacts (1A @ 24V dc) operating on any fire
- Alarm Load: 600mA loop, 100mA per conventional alarm output
- Fully fault monitored to EN 54-2 & 4
- Fault Output: Single pole changeover contacts (1A rated @ 24V dc)
- Auxiliary Output Supply: 24V dc fused at 150mA
- Common Fire Output (fire station): 24V dc fully monitored output (requires end of line module SF4165759)
- Communications Interface: USB 2.0 (Type A male to Type B male connection lead required - 2 Metres maximum length)
- Dimensions (mm): 228(W) x 345(H) x 111(D)
- Weight: 1.5kg (excluding batteries)
- Applicable Standards: EN 54-2 : 1997 + A1 : 2006 EN 54-4 : 1998 + A1 + A2
The control panel is designed and manufactured by Protec to comply with EN 54-2 & 4. The control panel is suitable for surface or recessed mounting with a moulded polycarbonate enclosure finished in storm grey.
The 6100 control panel is equipped with a high capacity Algo-Tec™ digital addressable data loop, with up to 192 addresses. In addition to the Algo-Tec™ 6000PLUS sensors, interfaces and manual call points the loop can also support loop powered SOUNDERS, BEACONS and OPTICAL BEAM DETECTORS. Additionally a 6300 Loop Powered Repeat Display can be connected directly to this loop, resulting in reduced cabling requirements, simplified installation and associated cost savings.
