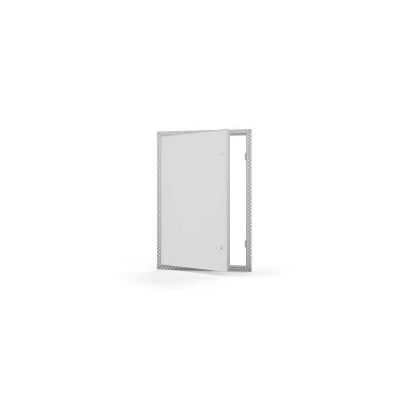

Acudor - Model FWC-5015 -Fire-Rated Drywall Access Door For Ceilings

SHARE

The Acudor FWC-5015 is a fire-rated access door, recessed for drywall ceilings. Door: Steel-22 Gauge recessed ?tted with 5/8” thick drywall suitable to accept skim coat finish on site. Door Frame: Steel-22 Gauge press bent for strength and rigidity with pre-punched flanges for convenient mounting and accepting skim coat finish on site. Hinge: Concealed. Fire Rating (Ceilings): Meets 90 minutes Fire Resistance Rating in accordance with CAN ULC S101-14, ASTM E119-16 and NFPA 251. Latch: Self-latching bolt, operated by ?ush key. Finish: Satin coat steel.

Most popular related searches
fire door
drywall
fire test
fire testing
  • For installation in drywall ceilings requiring concealing of the door panel consistent to surroundings
  • For use in Fire Rated Ceilings that needs tested and certified doors having Fire Resistance Rating of 90 minutes.
  • Recessed reinforced door fitted with 5/8” Fire-rated drywall.
  • Testing Standards – CAN ULC S101-14, ASTM E119-16 and NFPA 251
