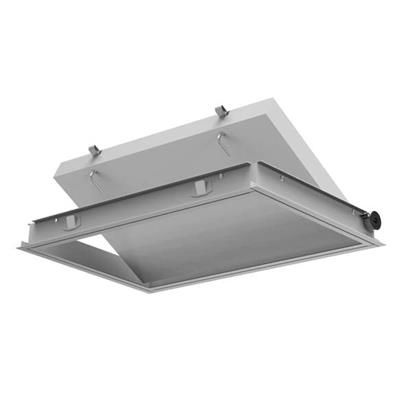

Acudor - Model FW-5050-UP -Fire Rated Insulated Access Door

SHARE

An insulated, fire rated access door for inward opening in ceilings. For fire rated ceilings, this door has been approved by Warnock Hersey International for 3 hours (max. size to 24” x 36”).  Insulated Door Panel. Self-closing. Self latching. Inside latch release.

Most popular related searches
fire door
  • Material: Steel or Stainless Steel
  • Door: 16 gauge, Flush to frame with reinforced edges filled with 2” thick fire insulation
  • Mounting Frame: 16 gauge mounting frame, with trim 1" wide
  • Hinge: Concealed with coil spring for dampening
  • Fire Rating: For walls: UL — 1-1/2 hour "B" label. ULC — 2 hour "B" label. Max size: 24 x 36. For Ceilings: Warnock Hersey International 3 hour rated in a non-combustible ceiling. 1 hour rated in a combustible ceiling. Max size: 24x 36
  • Standard Latch: L Handle - operable from both sides
  • Finish:  Steel: 5 stage iron phosphate preparation with prime coat of white baked-on enamel. Stainless Steel: Type 304 - #4 satin polish
