Ruker - Model BOP -5k - BH -Fire Resistant Rubber Coat Control Line Hose

APPLICATION: Fire rated hydraulic hose assemblies for land and topside BOP applications.Armor BOP hoses are complying with API 16D guidelines to meet and exceed OD/1000/499 flame testing at 1300?(704 ?) for 5 minutes.

TEMPERATURE: -40 ?to +250? (-40? to +121?)

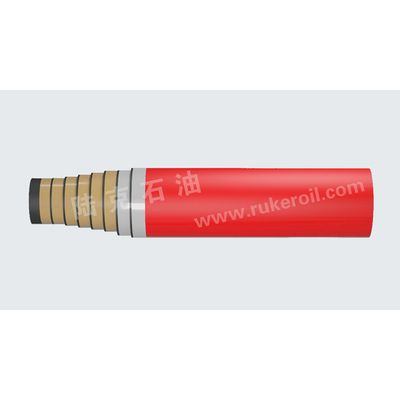

CONSTRUCTION:

• Tube: Nitrile Black oil resistant synthetic rubber
• Reinforcement: Multiple layers of steel cable and adhesion fabric
• Cover: Fiber glass impregnated, flame resistant rubber

COUPLINGS: Globalspiral couplings

OPTIONS: Quick disconnects are available upon request
