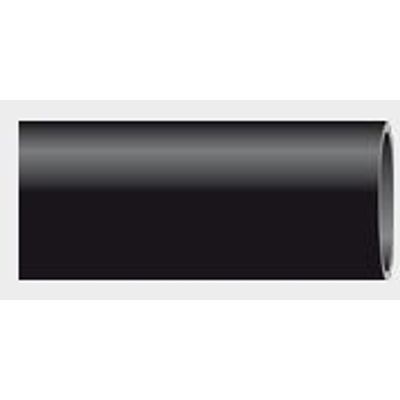

Gerodur - Model Class PE 80 -Firm Capacity Protective Pipes
EMDS protective pipes for a reliable cable protection. Useable for underground installation to blow in and inserting of cables and optical cables. Installation acc. to international standards. For a safely application > 100 years.
Most popular related searches
- cost-efficient pipe-laying technology
- no regenerates and recyclates
- Short-time properties of PE 80
- high defined tractive forces
- leasy laying, because of flexibility
- very good weldability
- Pipe structure : Solid type, one or multilayered with plain ends
- Identification : Solid type, single layered in black (optional with coloured stripes) or double layered with coloured outer layer | complete metre marking acc. to standard
- Application : EMDS protective pipe useable for underground installation, blowing, pulling and pushing of cables and suitable for LWL applications
- Special features : optional with ripped inner surface
- Material : Acc. to DIN 16874
- Standards : DIN 8074/8075 | DIN 16874 | DIN 16876 | DIN EN 61386-24 (VDE 0605-24)
- Approvals : ISO 9001 | ISO14001 | BS OHSAS 18001 | DIN 16874
- admissible tractive forces : DVGW – GW 320 ff. ffi values for PE80
- Dimensions : OD 20 – 630 | SDR 7,4 - SDR 33
- Delivery forms : Straight lengths | coils | reels
