Iron Container, LLC

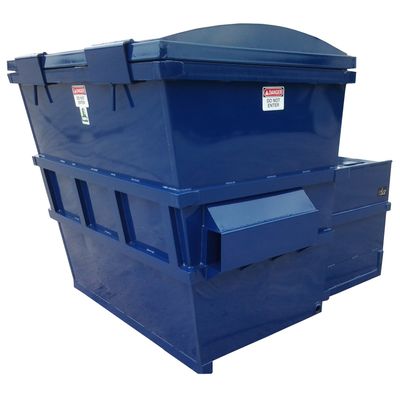

Iron Container - Fivepack Self-Contained Compactor
The FivePack Self Contained Compactor is ideal for applications that cannot utilize full size compaction systems due to volume or space limitations. Available in Front Load or Rear Load design, the FivePack is ideal for fast food chains or small restaurants that want to contain their liquid waste and eliminate unneccessary odor problems. The cross cylinder design reduces large volume of waste by its improved compaction force. Engineered with the same workmanship and innovations as the larger SelfPack Models, the FivePack is a clean and effective product to re-solve waste disposal.
Most popular related searches
self-contained compactor
roll-off container
compactor container
waste container compactor
waste containment
waste container
container lids
compaction system
liquid waste
waste disposal
- Compactor Sides 3/16”
- Compactor Floor 3/8”
- Ram Face 1/4”
- Ram Bottom 3/8”
- Ram Top 3/16”
- Container Floor 10 gauge
- Container Sides 12 gauge
- Container Lid 12 gauge
- Hydraulic Pressure 1800 psi - 2000 psi (max)*
- Cylinders (2) 3” x 20”
- Bore 3”
- Rod 1-1/2”
- Hydraulic Pump 6 gpm
- Oil Reservoir 15 gallons
- Clear Top Opening 24” x 48”
- Ram Face 18-1/2” H x 48” W
- Cycle Time 39 seconds
- Ram Force 23,000 lbs. - 30,000 lbs (max)
- Working Pressure 2000 psi - 2200 psi (max)*
- 5 H.P. 20 8/230/440/460 volts
- 3 Phase 4 wire, 60 cycle, 110V Controls
- All Circuits Fused/Push Botton Controls/Magnetic Switchs
