FIXATOR - Rigging Solutions for Suspended Platforms and Cradles
Fixator is renowned for developing advanced rigging solutions designed to safely and efficiently suspend platforms, cradles, and bosun chairs for building maintenance or construction tasks. Their systems are equipped with robust working and safety cables, supporting structures like suspension beams, parapet brackets, and clamps. Particularly innovative is the FIXEO setup, which uses additional masts, eliminating the need for rooftop anchoring. FIXATOR's offerings include modular Fixapoutre suspension beams constructed of steel tubes, adjustable to accommodate various environmental obstacles and capable of supporting up to 800 kg. Additionally, their parapet brackets can support loads and are versatile enough to handle new construction demands. The davit arm and Fixeo twin-mast platforms exemplify adaptability, while the manual monorail trolley facilitates efficient material lifting along specified paths. Developed, manufactured, and assembled in France, Fixator products prioritize safety and efficiency in elevated work scenarios.

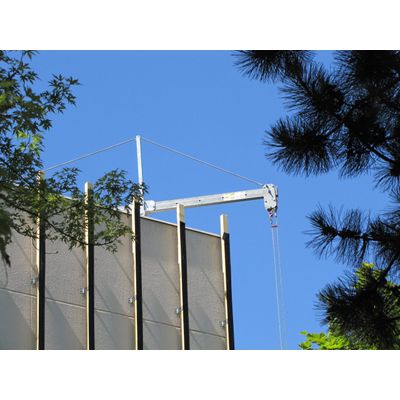

Counterweight suspension beams (or spitter plate) FIXAPOUTRE are made of steel tubes that fit into each other in order to be able to adjust the distance between the supports and the overhang (front offset).
Suspension beams are very modular. They can be equipped with a guying system, the supports can be raised in order to be installed above obstacles such as a parapet or a ventilation duct.
FIXAPOUTRE S
FIXATOR offers 4 telescopic models (with or without guy) in galvanized steel for greater resistance to bad weather. The maximum load capacity is 800 kg.
Wheel options for Type 4.S and 5.S – height under beam: 1260 mm
FIXAPOUTRE raised
Type 6 and Type 7
To allow the hanging of a suspended platform on a terrace cluttered with ventilation ducts or when the parapet is high, we have designed a raised beam offering the possibility of passing obstacles up to 2.80 meters and lifting heavier loads.
