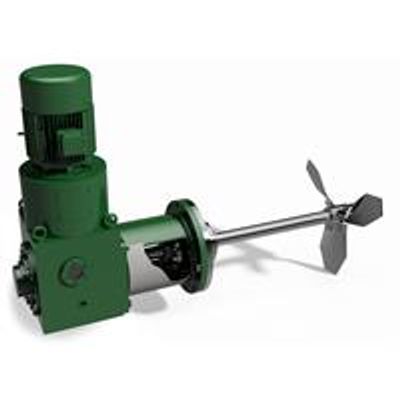

Greatwall - Model CFJ Series -Fixed Angle Gear Driven Side Entry Mixers
CFJ series side-entry mixers use one set of spiral bevel gears for power transfer. The structure is simple and transmission efficiency is high. With special desinged mechanical seal and shut-off device, it is widely used in Flue Gas Desulferization (FGD) absorb tower, oil storage tanks and other processes.
Most popular related searches
side entry mixer
wastewater treatment
petrochemical wastewater treatment
flue gas
water treatment
wastewater treatment system
mineral processing
petrochemical water
water treatment system
wastewater treatment design
- Power: To 55 kW(75HP)
- Speed: 170~350 rpm
- Torque: To 5000 N.m
- Bearings: 100,000 hours
- Technology: paddle
- Batch/continuous: batch
- Application: solid/liquid
- Application domain: water treatment, for the chemical industry
- Other characteristics: horizontal, compact
The main design features:
- Precision designed gears provides compact structure and extra strength for longer life.
- Robust bearings lives in excess of 100,000 hours.
- One piece of shaft design ensures precision and provides stability.
- Special shut-off device can provide seal maintenance without drain the tank.
- Special designed 261 seal (SiC-SiC) makes it possible for nearly all kinds of conditions.
The CFJ series mixers can be used for lots of processes, from simple storage mixing to complex gas-solid-liquid mixing.
- Flue Gas Desulfirization (FGD) --------
- Petrochemical--------
- Water and waste water treatment---------
- Mineral process------
