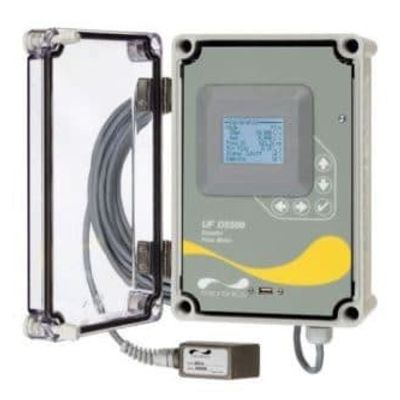

Micronics - Model UF D5500 -Fixed Clamp-on Flow Meter

Best value fixed non-invasive, clamp-on, measurement solution for dirty water applications.

Most popular related searches

Best value solution for “dirty” liquid monitoring including: Raw Sewage, Viscous Liquids, Sludge & Slurries, Solvents, Pulp Stock, Food Products, Lubricating Oils & Crude Oil.
To suit pipes 12.7mm-4500mm
No Pipe cutting, No contact, Non-invasive sensing
Easy to use
Watertight enclosure
New 26 million point data logger now as standard
Improved signal stability
Enhanced diagnostics
New Modbus and HART serial communications now optional feature

Pipe Range:– >12.7mm up to 4.5m
Power Input:– 100–240VAC, 50/60Hz, 10VA max
Flow Rate Range:– 0.03m/s to 12.2m/s in most applications
Accuracy:– +/-2% of reading or 0.03m/s whichever is greater. Requires solids or bubbles of minimum size 100 microns, minimum concentration 75ppm
Repeatability:– +/- 0.1%
Linearity:– +/-0.5% of full scale
Display:– White, backlit matrix – displays flow rate, relay states, 16-digit Totaliser, operating mode and calibration menu
Output:– Isolated 4–20mA (1000 ohm load max.) or 0-5VDC (Field Selectable)
Control Relays:– Qty 2, rated 5 amp SPDT, programmable flow alarm and/or proportional pulse
Data Logger– New Standard built-in 26 million point logger with USB output and Windows software
Enclosure Watertight, dust tight; NEMA4X (IP 66} polyester with a clear polycarbonate face
Electronics Operating Temp:– -23°C to +60°C
Sensor Operating Temp:– -40° to +150°C (-40° to 300°F)
Options:–

New Industrial Automation Protocols: Modbus RTU via RS485 or HART (field selectable)New Sensors: Intrinsic Safety Barriers for mounting in hazardous locations contact MicronicsEnclosure Heater: 9-32VDC. Enclosure Heater and Thermostat for outdoor installation.
