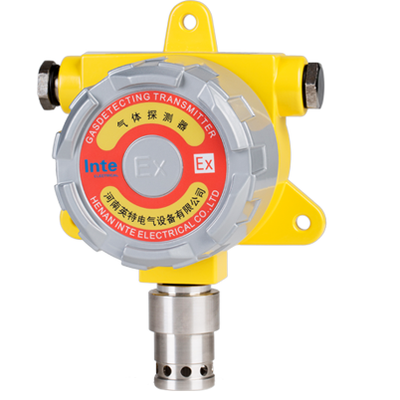

Inte - Model KQ500 -Fixed Gas Detector

with years of experience in designing and producing detector, we develop our new product with electrochemical sensor. It can be widely used in metallurgy, petrol, petrifaction, chemistry, light industry, coking, municipal administration, gas, pharmacy, sewage dealing and many other special industries and fields.  The device adopts intrinsic safety type channel design, standard 4~20mA two wires signal output. It can transfer data in long distance, can get into the DSC system directly. The detector has high sensitivity, quick response, long lifetime, polarization time and many other characteristics; it is among the first class in similar products in China.

• It can detect more kinds of gas. high precision
• Fixed explosion-proof shell; it’s safe and reliable
• Standard 4-20mA electric current output, compatible with existing alarm contro unit or DSC (distributed contro system).
• Imported sensor, high sensitivity, rapid response, stable and reliable
• operation is simple; easy installation and maintenance

• Detecting Gas  combustible gas, toxic gas, oxygen
• Working Temperature  toxic gas: - 20 ? ~ + 50 ?
• Combustible gas: - 40 ? ~ + 70 ?
• Relative Humidity  ≤90%R.H. no condensation
• Technical Parameters  Working voltage: 16~30VDC
• Working current: KQ500-EX is 120mA, others ≤50 mA
• Output signal: 4~20mA standard signal two wire type output
• (KQ500-EX three wire type)
• Sensor  electrochemical sensor;
• catalytic combustion type sensor for KQ500-EX
• Respond Time  T90<30s
• Weight   ≤900g
• Fixing Parameters  Fixing type: wall-mounted type
• Transition cable: two core shield cable
• (KQ500-EX uses three core shield cable),
• section 2×1.5mm2, external diameter ?10mm
• Transmission distance  ≤1000m
• Explosion-proof Level  Exd IICT6(used for explosion proofing detector);
• ExiaIICT4(used for intrinsic safety type detector)
• Protection Class  IP66
