Allegheny Instruments, Inc.

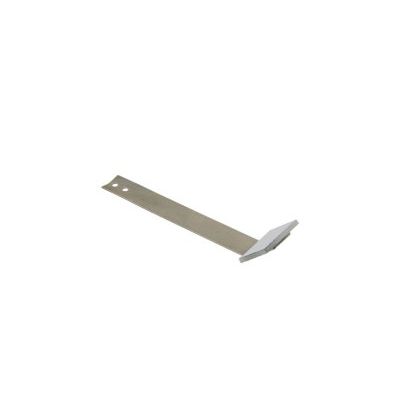

GeoVISION - Fixed Mirror
The GeoVISION Fixed Mirror mounts on the front of both the Standard Stainless Steel and the Standard Plastic cameras. It is used to provide a 90° view of the bore wall. The fixed mirror does not cover the entire field of view. This allows for a limited view down the bore as well as a view of the bore wall.
- Length: 4 inches (10.2 cm)
- Width: 1 inch (2.54 cm)
- Height: 0.75 inches (2 cm)
- Mirror Width: 1 inch (2.54 cm)
- Mirror Height: 0.625 inches (1.6 cm)
- Weight: 0.3 oz (8.5 g)
- Mirror Angle: 45°
