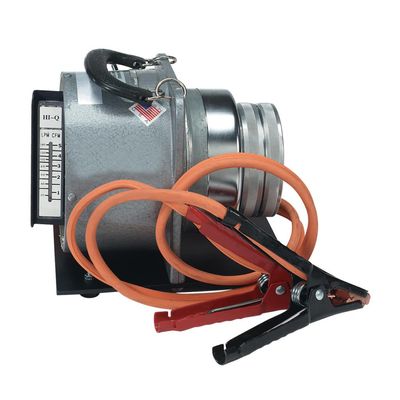

HI-Q - Model TFIA-4BC - 12/24 VDC -Fixed Speed Air Samplers

FromHI-Q Environmental Products Company, Inc.

SHARE

The TFIA-4BC is identical in configuration to the TFIA accepting the same TFIA options (excluding speed controller) as the AC power version depicted in the Portable HI-Volume Air Sampler section of this catalog. The TFIA-4BC operates on two automotive batteries in series, or for half the flow rate with one 12 Volt Automotive Battery (Batteries not included). See “Air Sampling Accessories” section of this catalog for optional 12/24 Volt DC Portable Power Source (P/N: PPS-12/24-VDC).

Most popular related searches

solar-powered air sampling

air sampling accessories

flow monitoring

centrifugal blower

battery operated air sampling

solar air sampling

portable air sampling

Motor/Pump : 12/24 Volt DC, 2-stage centrifugal blower. Amp Draw: 6.0 @ 12 Volts & 10 .0 @ 24 Volts.
Battery Cables : 8 Foot Battery Cables included.
Unit Weight : 12 lbs.
Shipping Weight : Total 14 lbs., 1 Box, 10½" x 10½" x 13¼"
Unit Dimensions : 8½" x 7½" x 7½"
Max Flow Rate 12 Volts DC : 8 CFM (w/ FP2063-102, 4" Dia.) , 16 CFM (w/ FP2063-810, 8" x 10")
Max Flow Rate 24 Volts DC : 17 CFM (w/ FP2063-102, 4" Dia.), 26 CFM (w/ FP2063-810, 8" x 10")
Filter Holders & Adapters : Unit includes a 4" Dia. paper only holder. Accepts 8" x 10" CF Holder.
Batteries : Call for Quote

TFIA-4BC : 12/24 VDC, Battery Operated, Fixed Speed Air Sampler.
SMR-TFIA : HI-Q calibrated, Side Mounted Rotometer (for accurate, easy to read, flow measurements). Please specify intended filter media & desired flow range.
ETMB-TFIA : Hard mounted Electronic, Resettable, Elapsed Timer with Bracket.
MNTPLT-TFIA : 7" x 9" TFIA Mounting Plate for desk-top sampling. Non-Slip feet.
