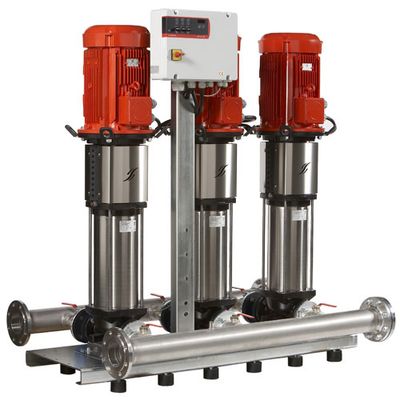

Alti-Nexis - Model V -Fixed-Speed Booster Module
FromSalmson
with essential functions for the pressurisation of drinking water distribution systems in collective residential and tertiary buildings.
Most popular related searches
water distribution system
drinking water distribution
drinking water system
water distribution
drinking water
glued valve
booster system
pressure sensor
ball valve
water collection
- Flow rate of up to : 320 m3/h
- Manometric head of up to: : 240 mWC
- Max. operating pressure : 16 bar - option of 25
- Fluid temperature limit : +70°C
- Max. ambient temperature : 40°C
- DN threaded manifolds : DN 21/2" to 3"
- DN flanged manifolds : DN 100 to DN 200
- Mains supply : 3~400 V, 50/60 Hz
- Power : Up to 15 kW
- Normal/Back-up and Cascade : Up to 4 pumps
- Regulation mode : Fixed-speed via pressure sensor
- For the pressurisation of drinking water distribution systems in collective residential and tertiary buildings.
- Energy savings
- Easy implementation
- Ease of maintenance
- System protection
- Pumps
IE2 motor featuring asynchronous technology (IE3 on demand)
Laser-welded high-efficiency hydraulics (3D/2D) - Hydraulic mechanism
Screwed & glued valve / manifold / hydraulic assembly
1/4-turn ball valve - Manifolds
304 stainless steel - Control box
Electronic board
Box made of composite material
