LAND® - Model LWIR-640 -Fixed Thermal Imagers and Line Scanners – Fixed Thermal Imagers – Fixed Stationary Thermal Imagers

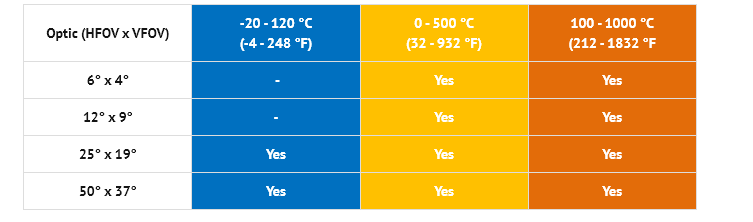

The LWIR-640 long-wavelength thermal imagers build on more than 20 years of thermal imaging experience, expanding the market-leading range of LAND temperature measurement solutions. They offer a full temperature measurement range of -20 to 1000 °C (-4 to 1832 °F) in three ranges with a choice of different optics and lenses.
Most popular related searches
thermal imaging, thermal imager, fixed thermal imager line scanning, temperature monitoring, process control system, temperature monitoring system, thermal imaging camera, thermal imaging system, precision temperature monitoring, flare stack monitor
LWIR-640 long-wavelength thermal imagers build on more than 20 years of thermal imaging experience
With increasing demand for improved product quality and efficiency, energy saving, predictive maintenance and emission reduction, thermal imaging cameras and systems play an important role in modern and industrial processing.
The new LWIR-640 long-wavelength thermal imagers build on more than 20 years of thermal imaging experience, expanding the market-leading range of LAND temperature measurement solutions. They offer a full temperature measurement range of -20 to 1000 °C (-4 to 1832 °F) in three ranges with a choice of different optics and lenses.
INDUSTRIAL THERMAL IMAGING
Designed for use in harsh industrial and environmental conditions, the LWIR-640’s smart, Industry 4.0 capabilities, bi-direction digital interfaces and on-board I/O provide reliable and robust, real-time thermographic measurement and imagery in industrial processes.
ADVANCED IMAGE RESOLUTION
The pixel resolution of 640 x 480 pixels and the high thermal resolution deliver uniquely clear and detailed thermal images and videos, at up to 60 Hz frame rate. This unmatched image quality supports highly accurate process visualisation and control.
INNOVATIVE SOFTWARE ANALYSIS
Advanced IMAGEPro image and data processing software offers real-time analysis of thermal images, giving users an exceptional level of understanding and control of their process. It also enables monitoring and configuration of up to 16 imagers.

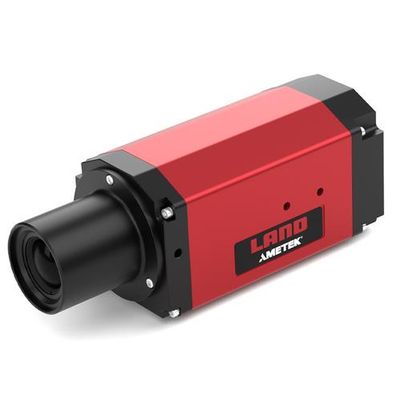

LWIR Camera
LWIR-640 is LAND’s smart long-wavelength thermal imaging solution for a range of industrial applications including automation, process control, machine vision, flare stack monitoring, hot spot detection, medical, critical vessel refractory monitoring, petrochemical, and food and mineral processing.
- Annealing Lehr Entry and Exit
- Batch Inlet
- Melt Tank – Outside
- Gasifier
- Gasifier
- Critical Piping
- Refining Pet Coke
- Sulphur Piles
- Coal Storage
- Pile Monitoring
- Storage Silo
- Ladle
- Sinter
