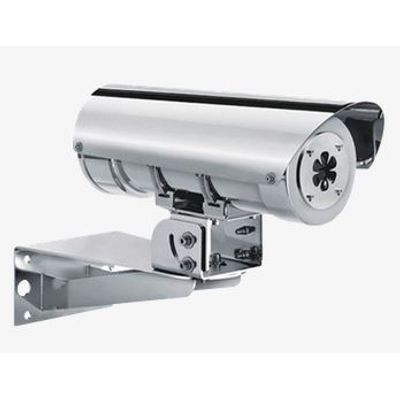

OGI(Optical Gas Imaging Camera) Gasviewer - Model GV-F-714 -Fixed Uncooled Gas Detection Camera
24/7 on site gas leak monitoring. Real time gas cloud colorization and quantification. Full turnkey solution including field junction box, control room hardware, alarms and connection to DCS. Safe for hazardous area (Atex zones 1 and 2).
Most popular related searches
gas detection camera
gas leak monitoring
hazardous area ATEX
ATEX zone 1
leak monitoring
hazardous area
gas detection
gas leak
fixed gas detection
mercaptan
ACCURACY
As low as 0.5 gr/sec CH4 at 100 m or 0,3 gr/sec CH4 at 50 m.
ALARMS
- Automatic visual and audible alarm on system screen in control room.
- Sending SMS or email to the person on call (optional).
- Through your DCS (optional).
CONNECTIVITY
- From camera to control room: fiber optic or wireless (optional).
- From system server located in your control room to your DCS: Modbus or dry contact (both optional).
RECORDING
- Automatic video recording starts with every alarm and lasts the time of the alarm.
- Additional recording time can be set up as per customer requirement (24/7 during x days for example).
- Videos are stored on the system hard drive. A userfriendly interface allows easy retrieval and play back for later analysis.
SAFETY CERTIFICATION
- ATEX II 3G Ex ec IIC T4 Gc, zone 1 available as option.
SYSTEM FLEXIBILITY
System server and software can handle multiple GV-F-714.
DETECTED GASES
CH4, SO2 and VOC’s , NH3, SF6, Methanol, cooling gases (CFC, HCFC)…
