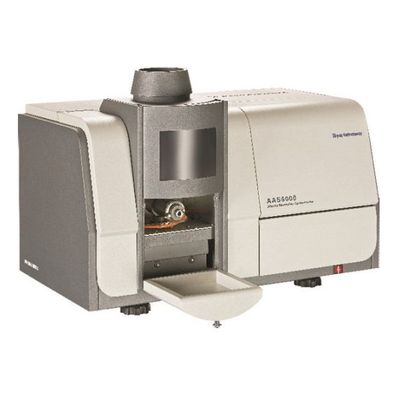

Skyray - Model AAS 6000 -Flame Atomic Absorption Spectrometer
Atomic Absorption Spectroscopy is a spectroanalytical procedure for the quantitative determination of chemical elements. AAS technique is widely applied for determining the concentration of a elements in Chemistry and other fields such as metallurgy, environmental, petrochemical, industrial and pharmaceutical. Skyray Instruments Atomic Absorption Spectrometers feature low limits of detection with multiple atomization modes and state-of-the-art user friendly software.
Most popular related searches
atomic absorption spectrometer
atomic absorption spectrometry
non-ferrous metal
environmental analysis
water quality
absorption spectroscopy
solid waste
spectrometer
solid waste industry
industrial solid waste
- All 8 lamps have individual power supplies. During operation 7 lamps are preheated simultaneously while the other lamp is working-thus dramatically reducing lamp switching and preheating.
- C2H2 analysis and flame measurement: full reflection and corrected aberration
- Fully automatic operation
- 8 element lamps
- Safety protection of gas circuit
- 230nm grating blazed wavelength, enhanced ultra-violet zone sensitivity
- 1800 g/mm grating density and optimized resolution
- Geology, minerals, metallurgy, steel, non-ferrous metals
- Environmental analysis: air, water quality, soil and solid waste
- Petrochemical industry and light industrial products, crude oil and additional products
- Food, biomedicine and health products
- Building materials (glass, ceramic, paints, etc.)
- Optical system: No lens, concave lens, total reflection, achromatic optical system
- Monochromator: Czerny-Turner
- Grating: 1800 lines/mm
- Slit: auto-switch 0.1,0.2,0.4,0.7, 1.4nm
- Detector: Photomultiplier
- Light source: > 8-element lamp turret
- Size/weight: 87cm x 56cm x 60cm, weight: 100kg
- Safety protection: : System leakage/ System pressure/ Burner monitoring with automatic shut-off
- Combustion system: : Atomizer, Pure Ti Atomizing Chamber & Burner
- Flame Atomiser positioning : Software controlled horizontal and vertical positioning
- Discharge System: : Manual
