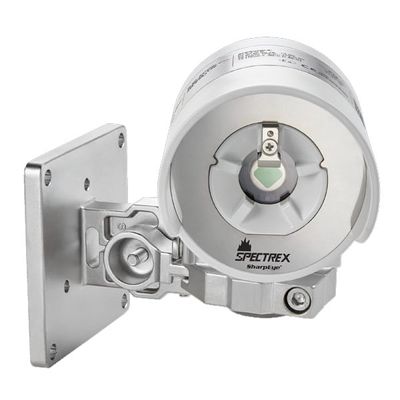

Spectrex SharpEye - Model 20/20Q -Flame Detector
The SharpEye™ 20/20Q Flame Detector from Spectrex™, part of Emerson’s trusted safety portfolio, delivers rapid and reliable flame detection up to 150 ft (45 m) using proven QuadSense™ IR3 technology. Designed for a range of industrial and public safety applications, it provides outstanding performance in harsh environments and ensures superior immunity to false alarms. Available: AB, BC, SK.
Most popular related searches
- Detection Range: Up to 150 ft (45 m) for hydrocarbon fires
- Technology: QuadSense™ triple infrared (IR3)
- Field of View: Horizontal: 100° / Vertical: 95° at 50% max distance
- Response Time: Typically < 5 seconds
- Sensitivity Settings: 5 levels (9.8 ft to 147.6 ft / 3 m to 45 m)
- Communication: Analog 4–20 mA, RS-485 Modbus®, Relay Outputs
- Built-in Test (BIT): Continuous infrared test for optical and electronics integrity
- Power Consumption: Normal: 25 mA (0.6 W) at 24 VDC
- Temperature Range: -40 to +158 °F (-40 to +70 °C)
- Humidity: 0–100% RH, non-condensing
- Enclosure Rating: IP66, IP68, NEMA 6P, UL Type 4X
- Certifications: FM3260, EN54-10, ULC386
- Mounting Options: Tilt mount, pole mount (2” or 3”), flame simulator, cone of view limiter
- Housing Material: Low-copper aluminum, polyurethane painted
- Weight: 1.65 lb (0.75 kg) detector only
