Consilium - Model UB-6 -Flame Detector Base Plate

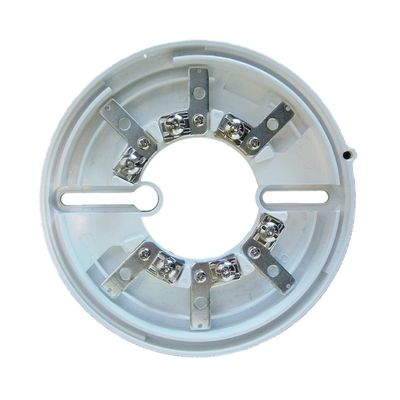

UB-6 is a low profile base plate for smoke, heat and flame detectors.

UB-6 is developed to replace the following bases:

• UB-1
• UB-2
• UB-5
• NS-BNCL

Please see separate document “Base Matrix” for information about suitable bases for detectors.

The base plate is made for use in dry and clean spaces, and it can be used for both addressable and conventional fire alarm systems. Some detectors might require special bases.

The cable entry is from the center or from the side of the base.

UB-6 is prepared for SUM-2 assembly. Detectors in the CN, EV and EVC series can be locked to the base using a 1,5 mm hexagon key to prevent tampering of the detector. Using this locking functionality is optional.
