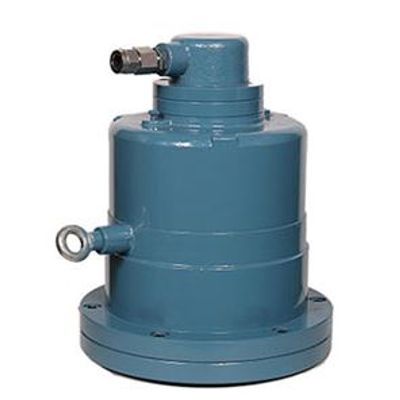

PETHE - Flame Proof Brake for Industrial Applications
Pethe Industrial Marketing Company Pvt. Ltd. manufactures and supplies flame proof brakes designed for hazardous atmospheric conditions. These brakes are engineered to conform to the IS/IEC 60079-1:2007 standards, making them suitable for Zones I and II environments. The design features a fail-safe operation, with disc brakes set in flame proof and weather proof enclosures, ensuring optimal safety in potentially explosive settings. The enclosures are available in small, medium, and large sizes, catering to various torque requirements. Their compact and modern design allows for easy mounting on the non-driving end of motors. Customers can access detailed technical drawings to better understand the installation and specifications. This comprehensive offering provides a robust solution for industries requiring reliable braking systems in challenging environments.
Flame proof weather proof (FLP / WP) enclosures are constructed in accordance with provisions as specified in IS / IEC : 60079-1 : 2007 ; suitable for II B and Zone I & II atmosphere. Failsafe AC or DC disc brakes are fitted inside these enclosures. Very compact and modern in design. The mounting flange of the enclosure is mounted on the non driving end of the motor. There are 3 types of enclosures : Small, Medium and Big depending upon the size and torque capacity of the brake. Detailed drawings of all 3 types are provided for your reference.
