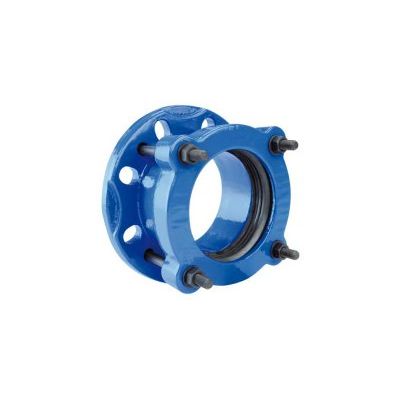

Aquaflex - Model AUFA -Flange Adaptor

Universal flange adaptor with medium range for metal, AC and PvC pipes, non-restraint. Body and compression ring high quality Epoxy powder coated (fusion bonded), coating thickness (DFt min. 150 microns), zero porosity (tested with 3000v), high impact resistance and cross-linkage according to DIN 30677-2 and DIN 3476. Hydraulic sealing obtained by compression of gasket between pipe and special seat on body. Bolts/nuts/washers from 8.8 galvinezed steel, high quality corrosion protected. Universal flange drilling according to eN 1092-2 PN 10 and PN 16. The product is not restraint, anchoring of the pipe is suggested.
