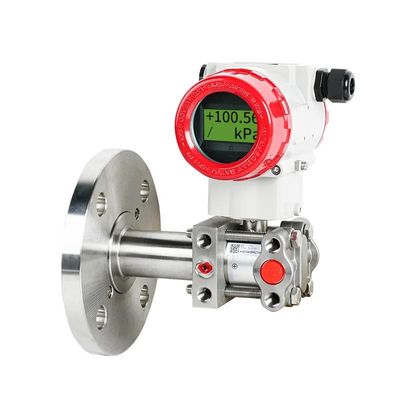

Meacon - Model MIK-2051LT -Flange mounted differential pressure transmitters
MIK-2051LT Flange-mounted differential pressure transmitter measures the height of the tank body according to According to the principle that the pressure generated by the liquid of different specific gravity at different heights has a linear relationship Features Range:0-6kPa~3MPaResolution:0.075%Output: 4-20mA analog outputPower supply:24VDC
Specification
Product
Differential Pressure transmitter
Model
SUP-2051LT
Measure range
0-6kPa~3MPa
Indication resolution
0.075%
Ambient temperature
-40 ~ 85 ℃
Output signal
4-20ma analog output / with HART communication
Shell protection
IP67
Diaphragm material
Stainless steel 316L, Hastelloy C, support other custom
Product shell
Aluminum alloy, the appearance of epoxy coating
Weight
3.3Kg
Reference List of the Relationship between Span Code and Span
Span Code
Min. Span
Max. Span
Rated Working Pressure (Max.)
B
1kPa
6kPa
The rated pressure of level flange
C
4kPa
40kPa
D
25kPa
250kPa
F
200kPa
3MPa
Reference List of the Relationship between Level Flange and Minimun Span
Level Flange
Norminal Diameter
Min. Span
Flat Type
DN 50/2 ”
4kPa
DN 80/2 ”
2kPa
DN100/4”
2kPa
Insert Type
DN 50/2”
6kPa
DN 80/3”
2kPa
DN 100/4”
2kPa
Performance
It is suitable for measuring fluid media such as ultra-high temperature 600℃, high viscosity, corrosiveness, easy precipitation, etc.performance
Measurement range (No Shift): 0-6kPa~3MPa
Filling fluid: silicone oil, vegetable oil
Diaphragm: SS316L, Hastelloy C, Tantalum, SS316L Gold Plated, SS316L Plated PTFE, SS316L Plated PDA, SS316L Plated FEP
