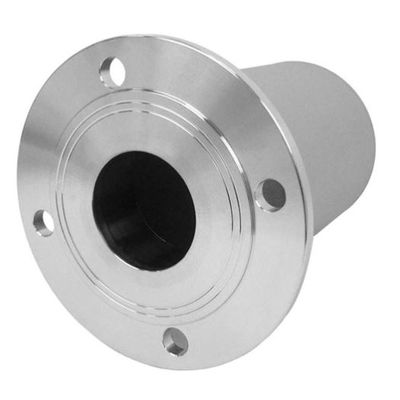

Huahang Filter - Model PN6 -Flange Stainless Steel Powder Sintered Filter 150×200
This PN6 flanged stainless steel powder sintered filter is a heavy-duty freestanding filter unit designed for direct integration into high-pressure piping systems. This robust assembly combines a high-performance stainless steel powder sintered filter element with a durable PN6 integrated flange, providing a reliable and leak-proof solution for demanding liquid and gas filtration applications. The compact design is ideal for in-line installations requiring superior corrosion resistance, high contaminant holding capacity, and robust bolted connections. Its core filtration technology utilizes fine stainless steel powder, sintered to form a monolithic porous structure with a complex three-dimensional interconnected pore network. This design enables true depth filtration, capturing contaminants across the entire thickness of the filter element.
- Outer diameter : 150 mm
- Height : 200 mm
- Working temperature : -20~+100?
- Filter layer : Stainless steel
- Filtration rate : 0.5 μm
- Connection : PN6 Flange
- Origin : Henan,China
- Brand : Huahang Filter
- Robust, Integral PN6 Flange Design: Features a machined PN6 flange as a permanent part of the housing, enabling a secure, bolted connection to your piping system. This eliminates the need for separate adapters, reduces potential leak points, and ensures mechanical integrity under pressure and vibration.
- Superior Depth Filtration via Powder Sintering: The sintered metal powder matrix offers exceptional dirt-holding capacity and consistent filtration performance. Unlike surface filters, it traps particles throughout its depth, extending service intervals and providing stable, low pressure drop.
- Excellent Thermal & Chemical Resistance: Constructed entirely from 304 or 316L stainless steel, the unit withstands high temperatures (suitable for most industrial process conditions) and resists corrosion from a wide range of aggressive chemicals, solvents, and process fluids.
- High Structural Integrity & Cleanability: The monolithic sintered element is extremely strong, resistant to shock and pressure cycling. It can be effectively cleaned via back-flushing, ultrasonic methods, or thermal processing for repeated use, offering a long service life and low total cost of ownership.
This sintered filter is suitable for precision filtration in the following industries:
- Analytical and laboratory equipment: Protecting high-performance liquid chromatography systems, mass spectrometers, and precision sensors from particulate contamination.
- Pharmaceutical and biotechnology: Sterile venting of bioreactors, filtration of buffers, solvents, and process gases in API production.
- Microelectronics and chemical industry: Point-of-use filtration of high-purity process chemicals, photoresists, and specialty gases.
- Fuel and hydraulic systems: Protecting precision control valves and metering devices in critical fluid power systems.
