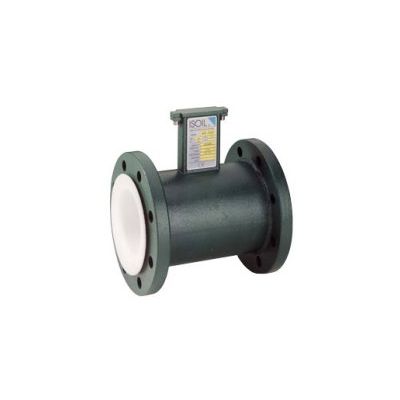

FSI ISOMAG - Model MS2500 -Flange-Style Electromagnetic Flow Meter Sensor
The MS2500 flow meter combines reliable full-pipe flow measurement with high accuracy, low cost and ease of installation. The MS 2500 flanged sensor are well suited for all application and flow ranges. The MS2500 is available in the widest range of diameters.
Most popular related searches
electromagnetic flow meter
flow meter
pipe flow monitoring
plastic piping system
plastic pipe system
flow monitoring
plastic pipe
pipe system
plastic piping
viscosity and temperature
- Accuracy to +/-0.2% of rate from 1 to 33 ft/sec.
- Nineteen sizes from 1" to 48" Pipe Diameters.
- Flow ranges from 2.37 to 179,400 GPM.
- Pressures to 5600 PSI.
- Volumetric flow rate measurement independent of fluid viscosity, density and temperature.
- No moving parts for zero maintenance.
- Bi-directional flow measurement.
- No pressure drop through sensor.
- Optional Integral ground electrode eliminates grounding rings with plastic piping systems.
- Minimal straight pipe run required.
