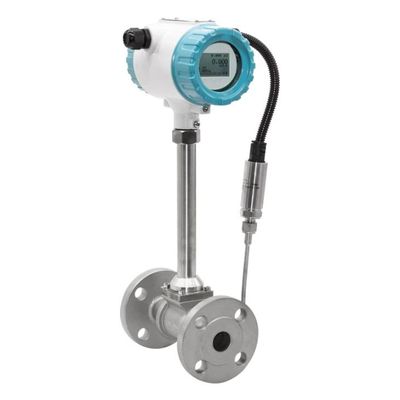

Flange Vortex Flow Meter

Flange Vortex Flow Meter

FromQ&T Instrument Co., Ltd

SHARE

Flange vortex flow meter works based on Carmen and Strouhal relevant spiral produce and on the theory of the flow relationship. Vortex flow meters measure flows of liquid, gas and steam by detecting the frequency at which vortices are alternatively shed from a bluff body. According to proven laws and physics, the frequency at which the vortices are shed is directly proportional to the flow velocity.

Most popular related searches

vortex flow meter

compressed air system

water monitoring

flow monitoring

thermal desalination

water desalination

±0.75% of reading(liquid);
±1% of reading(gas);
Integrated temperature measurement
Resist 350 ℃ high temperature;
Japan technology,low pressure loss
Anti-vibration measurement
Less leak potential

Japan technology with embedded-type sensor,sensor could integrate with temperature.
Circuit Board: Digital circuit board,anti-vibration and anti-interference.
Flow converter: Distinctive modular design, amateurs can operate, disassemble and assemble easily, it will avoid accident risks.
Integral forging, anti-rust, long service life
Resist high temperature up to 350℃,normal temperature up to 250℃

(non-)conductive liquids, gases, saturated and superheated steam
Gross/net heat metering of steam and hot water
Monitoring of compressor output and evaluation of Free Air Delivery (FAD)
Industrial gases (natural gas, nitrogen etc.)
Compressed air systems
Thermal oils,Desalinated water etc.
