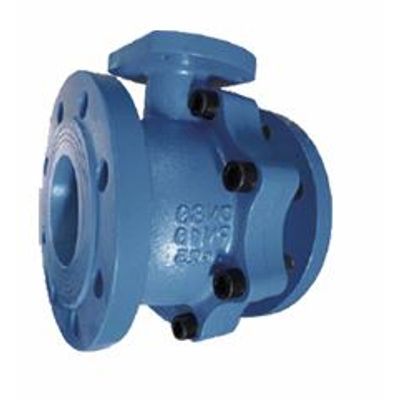

Ekoval - Model EKO3010 -Flanged Ball Valve

Pressure Ratings: 10K. Design Standard: JIS 10K. Face to Face Length: JIS B2002 . Valve Test: JIS B2003. Valve Marking: EN 19. Flange Standard: EN 1092-2. Product Group: Ball Valve. Medium: Water.

Most popular related searches

Valve Design According to JIS 10K, ANSI B16.1
Face to Face dimensions Regarding to JIS B2002 DN15-100(6), DN125-200(39)
Flange Connection According to JIS B2212
Working Pressure: 10K
Valve Testing: JIS B2003
Mounting Pad: ISO5211
Leak Proof Service
The fluid resistance is small, and its resistance coefficient is equal to that of a pipe section of the same length
Simple structure and light weight
Good Sealing Performance and has been Widely Used in Vacuum Systems
When fully open or fully closed, the sealing surface of the ball and the valve seat is isolated from the medium, and the medium will not cause erosion of the valve sealing surface when the medium passes.
Wide range of applications, with a diameter ranging from a few millimeters to a few meters, and can be applied from high vacuum to high pressure. This type of valve should generally be installed horizontally in the pipeline.
Excellent Sealing and Fluid Flow
Quarter Turn Operation

Body: EN GJL 250 Cast Iron (GG25 or GG40)
Bonnet: EN GJL 250 Cast Iron (GG25 or GG40)
Nut: Carbon Steel
Bolts: Carbon Steel
Ball: Stainless Steel (SS304)
Seat: PTFE
Washer: PTFE
Gasket: PTFE
Stem: Stainless Steel SS304
Stem Packing: PTFE
Gland Flange: Cast Iron GG25 or GG40
Gland Bolt: Carbon Steel
Lever: Ductile Iron (GGG40)
Circlip: Carbon Steel

Inner and outer surface of the valve is powder epoxy (250-350 Microns) coated

DIN Verison Available (Refer to. EKO3000)
Can be used with Pneumatic Actuator
With Electric Actuator
Electric Actuator Ready

Ekoval - Model EKO3010 -Flanged Ball Valve

Advantages

Material

Coating

Versions
