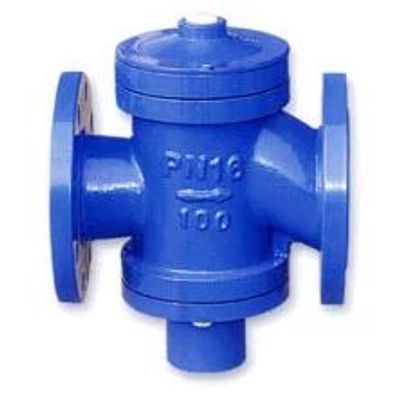

China-Valve - Flanged Cast Steel Self-Operated Flow Control Valve
Cast steel self-operated flow control valve consist of a control valve with set flow and actuator. The valve is used to control flow in pipeline systems. It is applicable for non-corrosive medium.
Most popular related searches
flow control valve
control valve
flow control
throttle valve
actuated valve
flow control system
valve actuator
valve operator
Characteristics of self-operated flow control valve
- Having internal bellows and pressure balanced structure, high sensitivity.
- Having compact structure and reliable performance, without maintenance.
- Adopting standard modular design.
- Control flow based on the standard of throttle valve, convenience.
- Using different assemblies can process multi composite control
Face to face: flanged
Leakage level: ASME B16.104 V (soft seal), ASME B16.104 IV (hard seal)
Applicable temperature:-30?~150?
- Nominal diameter DN: DN15-300, inch 1/2-12
- Nominal pressure: ANSI 150Lb,300Lb
- Materials of body: HT200, ZG230-450, ZG1Cr18Ni9Ti, ZG1Cr18Ni12Mo9Ti
- Materials of core: Stainless steel
