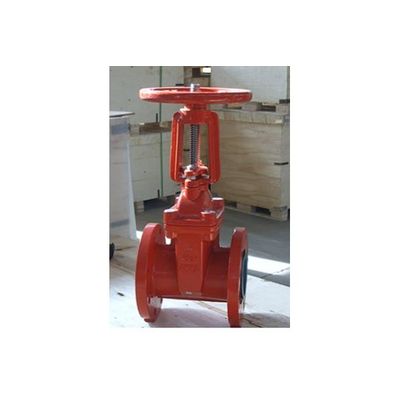

Flanged End Gate Valve
Standard: DIN 3352-F4, DIN 3352-F5, BS5163, AWWA C509,AWWA C515. Flange drilling is according to DIN2501, BS4504 and ANSI B16.1. Working pressure: 10bar/16bar/25bar.
Most popular related searches
Testing pressure:
- Shell: 15bar/24bar/37.5bar
- Seal: 11bar/17.6bar/27.5bar
- Type: non rising stem / rising stem
Material:
- Body: Ductile iron GGG40/50 or Cast IronGG25
- Wedge: Ductile iron GGG40/50+EPDM/NBR or metal seated
- Stem: stainless steel 2Cr13 , SS304,SS316
- Bolt and Nuts: Carbon Steel with zinc plated or SS304,316
- Coating: Internal and external with fusion bonded epoxy coating min250μm
