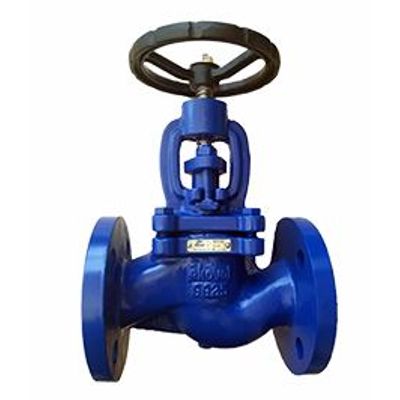

Ekoval - Model EKO4000 -Flanged Globe Valve

Pressure Ratings: PN10,16,25. Design Standard: BS EN 13789. Face to Face Length: EN 558-1 F1. Valve Test: EN 12266-1. Valve Marking: EN 19. Flange Standard: EN 1092-2 (ISO 7005-2). Product Group: Globe Valve. Medium: Water, Gas, Oil, Air, Sewage.

Most popular related searches

Valve design according to BS EN 13789
Flange Connection According to EN 1092-2 (ISO 7005-2)
Face to Face dimansions According to EN 558-1 F1, ISO 5752
Valve Test According to EN12266-1
Valve Marking EN19
Oblique Body Structure
Metal-Metal Application
Rising Stem
Suitable for High Temperatures (Also Steam)
Avoids Water Hammer
Suitable for Flow Control
Anti-Leaking Stem
Non-Ascending Shaft
Vacuum Service
Working Pressure PN16
Available for Cold and hot Water Applications, Oil, Steam, Gas and Air

Body: GG25 Cast Iron
Seat: SAE 420
Disc: SS304
Pin: Stainless Steel
Gasket: Graphite
Packing: Graphite
Compression Nut: GG25 Cast Iron
Bonnet: GG25 Cast Iron
Brass Nut: MS58 Brass
Stem: SS304
Handwheel: GG25 Cast Iron
Nut: DIN 934
Washer: DIN 127
Bolt: DIN 933
Set Screw: DIN 914

Inner and outer surface of the valve is powder epoxy (250-350 Microns) coated

Can be supplied with Rising stem and Non Rising Stem options
Bellow seal Optional
PN40 Cast Steel (Refer to EKO4100)
