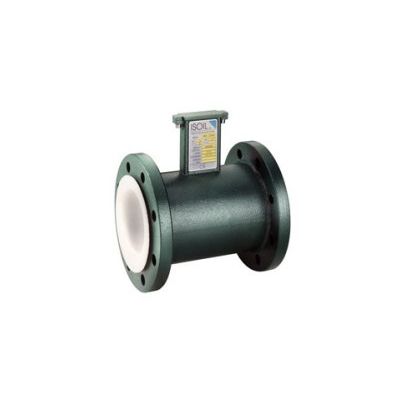

ISOMAG - Model MS2500 -Flanged Sensor For Electromagnetic Flow Meter

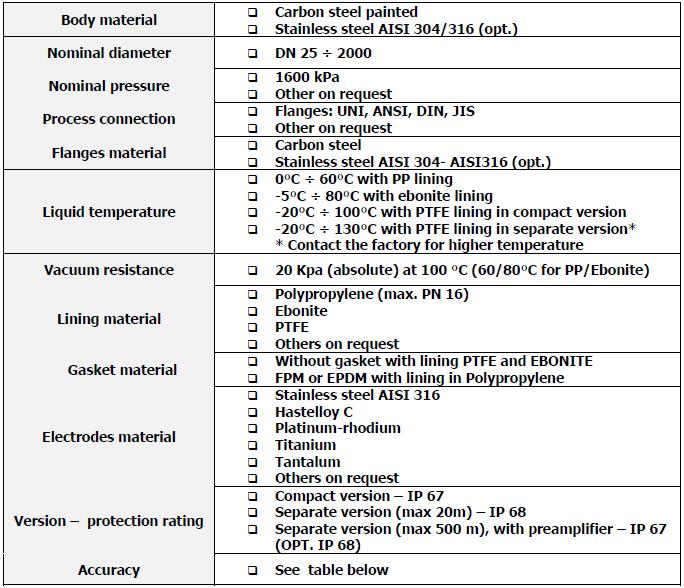

Body material: Carbon Steel and SS AISI304/316 Nominal diameter: from ND 25 to ND 2000 Flow range: 0…113.000 m3/h Nominal pressure: from PN 6 to PN 250 Process connections: flanges according to all international standards. Liquid temperature: from -20 to +180°C Wide choice of lining materials. Wide choice of electrodes materials. Accuracy and repeatability data are according to the chosen converter (see converters section). For further information, see the enclosed technical data sheet.
