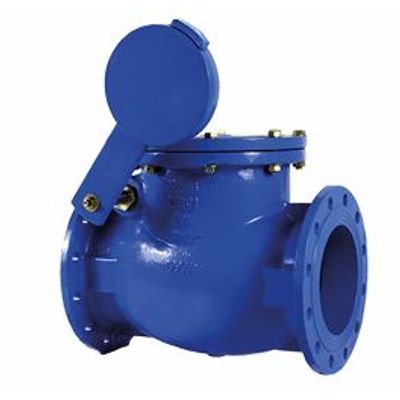

Ekoval - Model EKO5300 -Flanged Swing Check Valve
Pressure Ratings: PN10,16,25. Design Standard: EN 12334. Face to Face Length: DIN 3202 (F6) . Valve Test: EN 12266-1. Valve Marking: EN 19. Flange Standard: EN 1092-2. Product Group: Check Valve. Medium: Water.
Most popular related searches
swing check valve
check valve
flow control check valve
flanged swing check valve
drinking water network
hot water system
non-return valve
valve testing
drinking water
flow control valve
- Valve design according to EN 12334
- Face to face length according to DIN 3202 (F6), EN 558-1
- Flanged connection according to EN 1092-2
- Valve test according to EN 12266-1
- DIN, BS5153, API 6D Type
- EKO5300 Series swing check valves are completely suitable for potable water networks
- Potable Water, Cold and hot water systems, any fluid without acidity or alkanity
- Max Application Temperature +130°C
- Non-Return valve
- Available in Big Sizes (Refer to EKO5300L)
- Body: EN-JL 1040 Cast Iron, GGG40/50 Ductile Iron
- Bonnet: EN-JL 1040 Cast Iron, GGG40/50 Ductile Iron
- Bolts: DIN 933
- Washer: DIN 127
- Disc: EN-JL 1040 Cast Iron, GGG40/50 Ductile Iron
- Hanger: EN-JS 1050 Ductile Iron
- Disc Gasket: Brass (MS58)
- Seat: Brass (MS58)
- Hanger Pin: 2Cr13
- Gasket: Graphite
- Inner and outer surface of the valve is powder epoxy (250-350 Microns) coated
- Can be supplied with Lever (Please ask for a quotation)
- Counterweight can be adapted to this model
