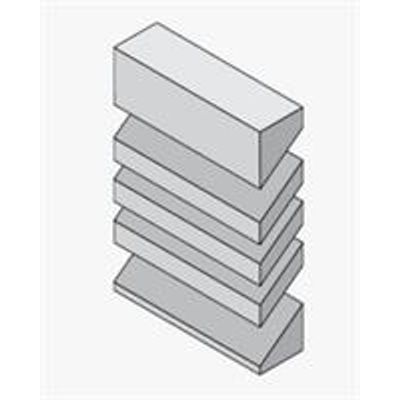

Vibro-Acoustics - Model ALF -Flat Blade Acoustic Louvers

SHARE

Flat Blade Acoustic Louvers (up to 18” in depth) deliver an economical means of providing attenuation to low velocity air inlet or outlet openings, while minimizing a line of sight through the opening.

Most popular related searches
acoustic louver
air intake
noise control
AMCA

Acoustical Performance
Transmission Loss (TL) determined by ASTM E90. Noise Reduction (NR) may be determined as: NR=TL+6. Insertion Loss (IL) may be estimated using: IL=TL+2 for all bands of interest

Aerodynamic Performance
Free Area and Pressure Drop determined by AMCA Standard 500-L for free inlet and outlet under Ideal conditions. System effects due to ducted conditions, low height, or obstructions may increase pressure drop by a factor of 1.5 or higher.

Dimensions
Maximum single piece size: 60" x 120"; larger louver sizes will be multiple pieces. Minimum height: 12". Louver with less than 30" high, will require assistance with product selection to minimize risk of higher pressure drop values.
