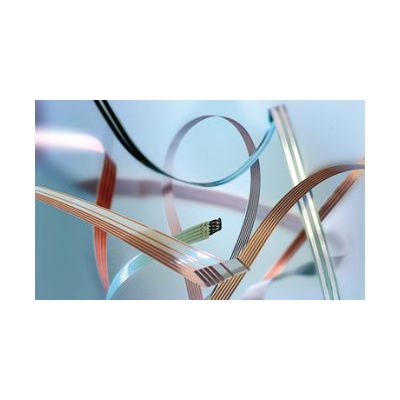

BRUKER-SPALECK - Flat Conductors

BRUKER-SPALECK - Flat Conductors

Base material copper: In accordance with EU-standard: DIN EN 13602 (Cu-ETP, Cu-ETP1, Cu-Of, Cu-Of1). in accordance with US-standard: ASTM B 224 – 80. Available in different strength classes according to DIN EN 13599.

Most popular related searches

Optional coating on the base material

Tin (Sn),
Silver (Ag),
Nickel (Ni),
and others on request

Dimensions

Thickness from 0.017 to 1.200 mm
Width from 0.200 to 24.000 mm*
> 6.000 mm width made of cut strip, re-rolled

Meets flexible flat cable (FFC) standards starting at 0.025mm

Designs

Additional application-optimized strengths to your specifications available
Edge shape: Milled round, cut

Features:

Geometrical and mechanical values are reviewed and documented according to your requirements
Tightest tolerances in terms of thickness and width
Resistance measurement to defined specifications
Manufactured to your customized specifications

Applications
Flat wire for:

FFC (Flexible Flat Cable)
flat cable (extruded and laminated)
flat cable applications
connecting electronic components and boards
conductor wire and shielding wire for high-frequency cable (RF cable)
