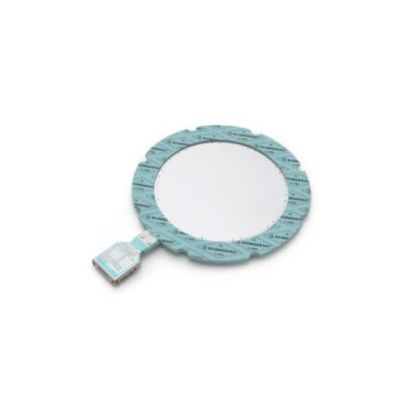

REMBE - Flat Rupture Discs

Flat rupture discs from REMBE offer you fragmentation-free opening across the full width of the vent. Can be produced in virtually any size from DN 20 to DN 1400, for very low pressures from 15 mbarg and with low burst tolerances. For protection against overpressure and vacuum in storage vessels and low pressure systems. Also suitable as a secondary safety device alongside breather valves. This REMBE rupture disc is designed to work at standard operating ratios of up to 50 % of the min. response pressure. It is installed directly between flanges and is available for all flange types. No holder required for installation.
