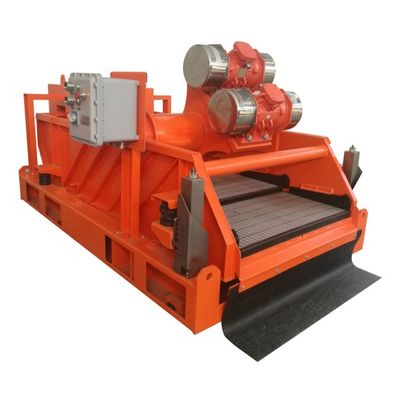

KES Separation - Flat Screen Shale Shaker

The shale shaker has different configurations to work with different drilling requirements. The two-panel shaker can work for small rig drilling operation. The three-panel shaker can work with oil drilling / water well drilling / HDD. The four-panel shaker can work for oil drilling operation / waste management to achieve much dryer drilling cuttings.

When working for drilling cuttings treatment, high G dryer or high G shaker is normally requested. Lower operation cost, lower maintenance cost, the oil on cuttings can be reduced to about 10 ~20%. In some other drilling operations, the owner may require to reduce the OOC below 3~5%, and we recommend Vertical cuttings dryer to achieve this target.

Drilling Mud Shale shaker is the first phase screening machinery in solids control system. With over 10 years of experience in design and manufacturing, KES Separation’s heavy-duty shale shaker is capable of operating in most hazardous areas for both onshore and offshore drilling activities.

• Liner Motion, Balance Elliptical Motion and Dual Motion available.
• Capable to deal with heavy mud in large feeding capacity
• Shaker deck angle adjustable while working, mechanical deck angle adjustment with reliable performance.
• Shale shaker bottom deck made from Stainless Steel for long service life.
• Heat treatment on complete shale shaker deck for High G force operation.
• Pretension shaker screen for fast screen replacement, shaker size equivalent to Swaco Mongoose
• Famous Brand Vibration Motors: Italy OLI or US Martin brand motors
• Main electrical components is sourced from premium brands: SIEMENS, Schneider or ABB available
• Different type shaker available for different applications
