TFT - Flat Sheet Ceramic Membrane

FromNanjing Tangent Fluid Technology Co Ltd

SHARE

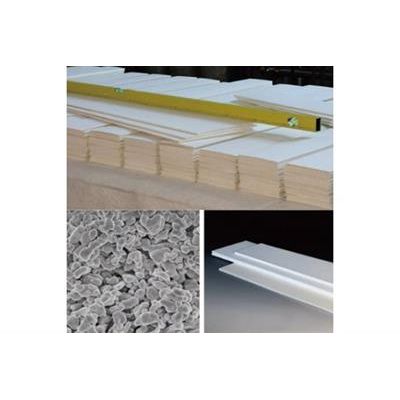

The flat ceramic membrane is a new type of high temperature plate porous ceramic membrane, which is prepared by high temperature sintering process using inorganic materials such as alumina. Compared with the organic film, ceramic flat membrane has the advantages of good chemical stability, good reliability, long service life and strong anti-pollution ability.

Most popular related searches

ceramic membrane

paper mill wastewater treatment

flat sheet ceramic membrane

hospital wastewater treatment

domestic sewage treatment

wastewater treatment

paper mill wastewater

porous ceramic membrane

seawater desalination pretreatment

hollow fiber membrane

Long life and no degradation
Strong resistance to acid, alkali and to organic solvent; Suitable for all kinds of wastewater containing solvents and chemicals
Strong hydrophilic and better anti- pollution property
Better Mechanical properties, no broken wires phenomenon of hollow fiber membrane
Easy to wash lower cleaning frequency, suitable for all kinds of membrane cleaning methods
Low operating cost and energy saving

Length (mm): 500-1100
Width (mm): 110, 150, 250
Thickness (mm）: 3, 6
Area (m2): 0.5
Membrane material: Al2O3, ZrO2, TiO2
Pore diameter (μm): 0.1
Pure water flux (m3/m2.h): 0.5-1.0
pH: 0-14
Breaking strength (MPa): ≥40

Membrane Bioreactor (MBR)
Industrial wastewater treatment (e.g. paper mill wastewater treatment)
Seawater desalination pretreatment
Municipal wastewater treatment
Domestic sewage treatment
Hospital wastewater treatment
Landfill leachate treatment
Pretreatment of RO system
