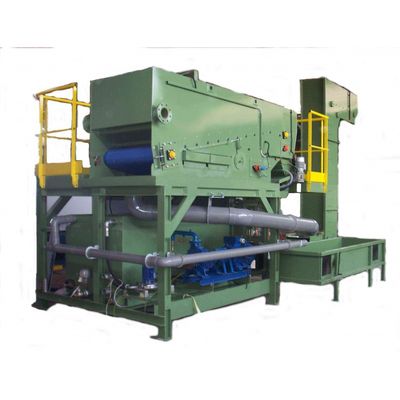

FLDI - Filtration for Grinding Machine
The FLDI filter for cleaning fluids has several advantages such as operational reliability. The filtration capacity is estimated from 5 to 25 m3 / h.
The filtration capacity is estimated from 5 to 25 m3 / h.
- The filter uses the self-filtering property of the product: eliminating the use of filter paper
- Separation of the rejects before elimination: with the centrifuge, the rectification sludge is wrung out (“recovery” of the reject making it possible to find elimination channels, etc.)
- Simplified use and operation
- Operational reliability
The filtration capacity is estimated from 5 to 25 m3 / h.
Receiving tray output chutes:
Diamond tip receiving tray with venturi for lifting
Capacity 1000 Liters including the side chutes of the grinding machine.
Retention basin under the assembly
304 L stainless steel material
Filtre à tapis :
Pvc filter mat
Connection belt with the centrifuge
1000 L receiving tank at the filter mat outlet
3000 L clean water tank
40 µ finishing filter between the two tanks
Level controller and overflow weir
Garbage truck
304 L stainless steel material
Pumps :
Lift pump for the venturi connected with rigid steel pipes.
Self-supplied main lubrication pump.
Temperature management:
Immersion heater for temperature rise.
Air / water cooler to lower the temperature.
Temperature probe and management by PLC.
Elevator conveyor to container:
Chain plus sleepers
Gear motor
Painted steel structure (color to be defined)
Arrival height = 2.4 m
Clipping screw on container
Allows you to fill the entire container.
The assembly is retractable to allow the container to be changed.
Electrical cabinet:
IP 55 cabinet
Supply voltage: 380 V tri
24 V control voltage
Frequency: 50 Hz
Programmable robot
Retention tray :
Watertight container under the entire installation
Height = 100 mm
Capacity 1.4 m3
Low point with sump pump
Preserves any small leaks and wash water.
centrifuge, bucket elevator, container skimmer.
