Flexamat - Vegetated Concrete Block Mat

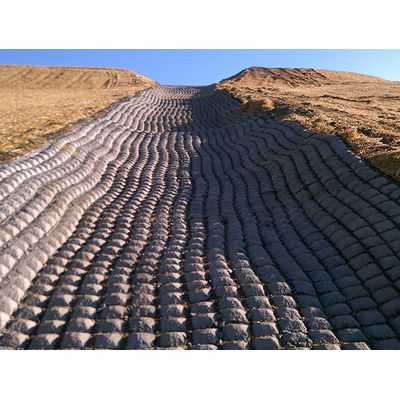

Flexamat® is a vegetated concrete block mat utilized for stabilizing slopes, channels, low water crossings, inlet/outlet protection, and shorelines. It consists of concrete blocks (6.5Ë x 6.5Ë with a 2.25Ë profile) locked together and embedded into a high strength geogrid. There is 1.5Ë spacing between the blocks that gives the mat flexibility and allows for optional vegetation growth. The mat is packaged in rolls, making transporting and installing Flexamat® efficient. Tied Concrete Block Mat is a generic term for Flexamat.
Most popular related searches
nonwoven filter fabric
concrete mat
woven filter fabric
filter fabric
water quality
water quality improvement
phytoremediation
geogrid
water optimization
fabric filter
- High Performance Un-vegetated capabilites, 30 ft./sec. & 24 PSF
- Easy Maintenance Safe to mow over
- Fast Installation Roll design makes installation efficient
- Simple Installation Personnel can install with their own equipment
- Aesthetically Pleasing Conforms to landscape
- Improves Safety Safe for motorist to drive across
- Environmentally Friendly Safe for pedestrians and wildlife to walk across
- Reduces Construction Costs Low material cost, less labor and faster project completion.
- Discourages Graffiti Vegetated solution rather than poured in place concrete
- Improves Water Quality Offers Phytoremediation and reduces thermal impact
- Low-Impact Development (LID) Helps achieve MS4 permit requirements
- Mat Width & Length Manufactured in standard widths of 4`, 5.5`, 8`, 10`, 12, & 16`. Lengths can be cut to order per project requirements. Stocked lengths are 30`, 40`, & 50`. 4` x 4` mats stacked on pallets are also available.
- Underlayment Options Standard Flexamat® is manufactured with Curlex® II underlayment backing. It may also be manufactured with Recyclex® TRM or non-woven filter fabrics. Onsite conditions and project requirements determine the appropriate underlayment material. Customize Flexamat!
- Weight per Square Foot 10 lbs per square foot
- Block Size The concrete blocks are 6.5" x 6.5" x 2.25". There is 1.5" spacing between the blocks.
- Limiting Shear 24+ PSF (non vegetated)
- Limiting Velocity 30+ft./second (non vegetated)
