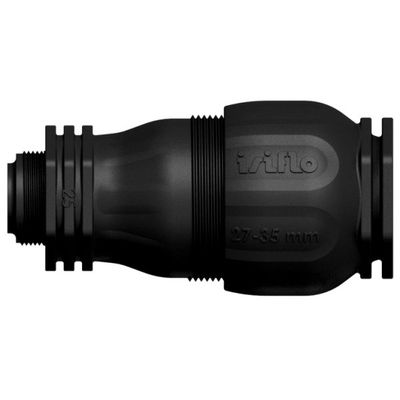

ISIFLO - Model TYPE 136 -Flexi Adapter
ONE FITTING FOR ALL KIND OF PIPES Flexi is a family of couplings and adaptors customized for water supply, providing a simple connection with low innstallation torque and without the need of any special tools for assembly. The special designed rocket (with POM clamp ring and metal nails) ensures an end-load rescistant connection when the nut is fully tightened. The Flexi products can be used on all type of pipes. This product range includes Flexi Coupling, Flexi Sprint, Flexi Adaptor and Flexi - Flexi.
Materials:
- Body: Composite, glass reinforced PA
- Compression cartridge: POM
- O-Ring: EPDM
The material is environmentally friendly, and 100% corrosion resistant.
Area of applications:
- Cold water -0-40°C
Working pressure:
- Water - up to 16 bar
Assembling instruction - for all kinds of pipes
ISIFLO FLEXI ADAPTER - for all kinds of pipes
- Cut the pipe squarely, check that the pipe is clean and free from damage.
- Check that the nut on the adapter is totally open to ensure that the o-ring has no compression. Then insert the pipe into the Flexi Adapter until end stop.

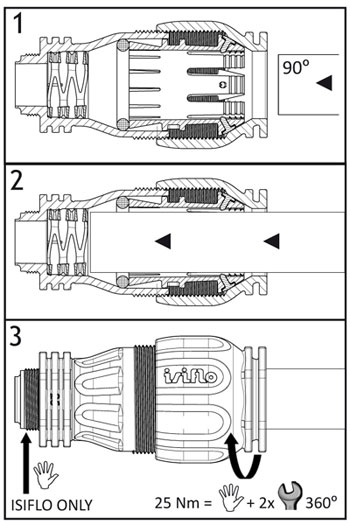

- Tighten the nut by hand. Thereafter re-tight 360° with tool. (Min 12NM) For the biggest dimensions (6221004 and 6221005) we recommend two revolutions with tool.
ASSEMBLING INSTRUCTION - with any ISIFLO Brass couplings
ISIFLO FLEXI ADAPTER - with any ISIFLO Brass couplings

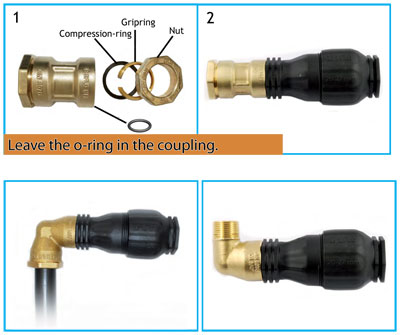

- Remove the nut, grip- and compression ring. Leave the o-ring in the coupling.
- Assemble the ISIFLO coupling and the ISIFLO Flexi Adapter by hand.-
The ISIFLO Flexi Adapter is to be assembled together with any ISIFLO brass couplings, and gives the already comprehensive ISIFLO bricksystem a new dimension of flexibility.
Test and approvals:
Isiflo Flexi Adapter is tested in accordance with DIN 8076 / ISO 3458; ISO 3459, ISO 3501 og ISO 3503. Isiflo Flexi Adapter is approved for seawater.
By reuse of the Isiflo Flexi Adapter the compression cartride, the o-ring and the flexible internal stop has to be replaced.
