MST - Flexible Basin for Liquid Storage
The MST Flexible Basin is a versatile plastic storage solution designed primarily for manure but suitable for a variety of other liquids including sludge and water. Available in heights ranging from 200 to 500 cm and diameters from 369 to 3877 cm, it provides volumes between 22 m³ and 5997 m³. Constructed with a steel frame and 6 mm LDPE plates, this system is supported by specialized steel cables for structural integrity. An FPP manure bag lines the interior, capable of utilizing either a floating or tension cover, based on diameter. The system allows for efficient filling and emptying via pipes located beneath or over the basin's edge. Since its inception in 1992, the MST Flexible Basin has been characterized by its ease of installation and relocation, obviating the need for concrete foundations. Compliance with regulations is ensured, and permits are handled by the company's professional team.
A plastic manure storage system for manure, but of course also suitable for sludge, water and all kinds of other types of liquids.
The MST Flexible Basin is available in heights of 200, 300, 400 and 500 cm and with diameters from 369 cm to 3877 cm. This means that the smallest volume is 22 m³ and the largest volume is 5,997 m³.

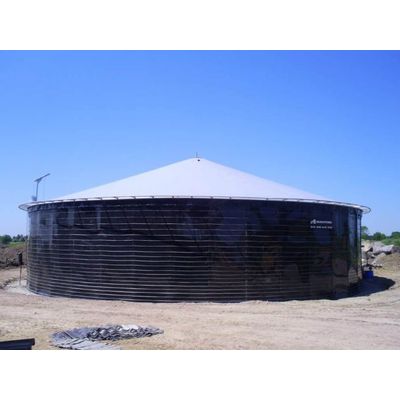

The MST Flexible Basin is a manure silo consisting of a steel frame with around 6.0 mm LDPE plates around it. We install special steel cables around this plastic outer wall. These steel cables absorb the forces directed outwards. A high-quality FPP manure bag is placed on the inside of the MST Flexible Basin. A floating cover can be installed on the basin as standard, but with diameters of up to 2500 cm it is also possible to fit a tension cover. The emptying and filling of the manure silo takes place via a remove/fill pipe underneath the basin or possibly via a pipe over the edge.
WHY A MST FLEXIBLE BASIN:
- Proven quality since 1992
- Simple and fast to install and eventually to move
- No concrete necessary
- Meets all rules and regulations
- Permit application is provided by us as standard
- Built by our own professional staff
