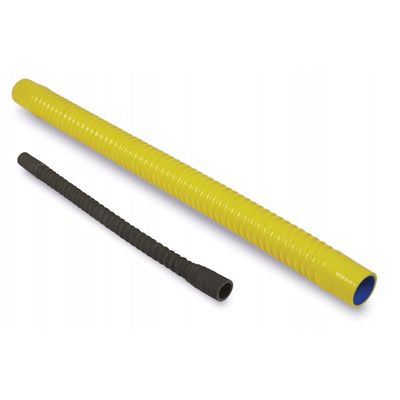

Shore - Flexible Convoluted Hoses
High performance. Exceptional “positive” and “negative” Pressure-resistance. Meets and exceeds SAEJ20 Class A and SAE J2006-R3 industry standards (the Marine Hose-range also has Lloyds approval). High-quality polyester reinforced. Additional ply of Stainless-steel wire encapsulated between the fabric plies. Recommended for temperatures: -65°F to 350°F (-53.9°C to 176.6°C).
Most popular related searches
| Inner Diameter (mm) | Burst Pressure (Bars) | Bend Radius (mm) |
| 25.4 | 23 | 95 |
| 31.8 | 18 | 109 |
| 38 | 17 | 122 |
| 44.5 | 15 | 165 |
| 50.8 | 14 | 217 |
| 63.5 | 13 | 276 |
| 76.2 | 12 | 370 |
| 88.9 | 12 | 421 |
| 102 | 10 | 513 |
| 114 | 8 | 610 |
| 139.7 | 6 | 674 |
Also available in:
- EPDM, NBR, CR or NBV-PVC.
- Silicone with inner lining of Fluorosilicone (FVMQ)
- Meta-aramid reinforcement instead of Polyester
Also available with Plastic wire for Non-Conductive applications, where relatively high-pressure resistance is needed compared to Hoses without wire.
